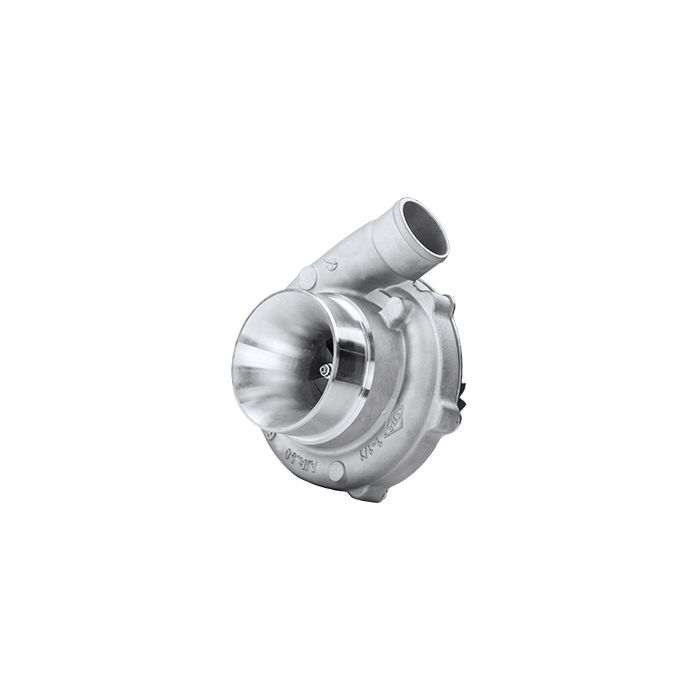

Garrett GT3071R Super Core 4in Inlet T04E CHRA Part 836000-0002 - 836028-5002S
Special Price$1,035.35Regular Price$1,491.68
sku
grt836028-5002S
This Item has limited quantity.Request Quote for item availability.
Stock is low or unavailable. Please Request Quote for stock status
Unleash the full potential of your vehicle with the Garrett GT3071R Supercore - 836028-5002S. Designed for high-performance enthusiasts, this turbocharger offers exceptional power and efficiency. Its advanced ball bearing technology ensures rapid spool-up and improved throttle response, delivering a thrilling driving experience. Built with precision and durability in mind, the GT3071R is perfect for those seeking a reliable boost in horsepower. Whether on the track or the street, this turbocharger provides the performance edge you need. Upgrade your ride and experience the difference with Garrett's cutting-edge engineering.
Important product information:
Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.
Features
ORIGINAL GT SERIES AERODYNAMICS
53mm TURBOCHARGER COMPRESSOR OPTION
INTERNALLY WASTEGATED TURBINE HOUSING
NON WASTEGATED TURBINE HOUSINGS AVAILABLE
BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
V-BAND TURBINE HOUSING OPTIONS
GT3071R
Reference Data
The latest Garrett technologies featuring many advanced features.
GT3071R
Compressor
Turbine
HP: 280-480 Disp: 2.5L-3.5L
Inducer
Exducer
A/R
Inducer
Exducer
Trim
Supercore PN
836028-5002S 102.00mm hose / square heat shroud
53mm
71mm
0.50
60mm
55mm
84
836028-5005S 102.00mm hose / stepped heat shroud
53mm
71mm
0.50
60mm
55mm
84
836028-5001S 69.85mm hose / square heat shroud
53mm
71mm
0.50
60mm
55mm
84
Turbine Kits: GTX30
PN
A/R
Inlet
Outlet
Wastegate
Divided
Interchangeable with GT, GTX Gen I, and GTX Gen II 30 Series Supercores
740902-0009
0.63
T3
V-Band
Free Float
N
740902-0008
0.82
T3
V-Band
Free Float
N
740902-0007
1.06
T3
V-Band
Free Float
N
740902-0036
0.61
V-Band
V-Band
Free Float
N
740902-0035
0.83
V-Band
V-Band
Free Float
N
740902-0034
1.01
V-Band
V-Band
Free Float
N
PN
A/R
Inlet
Outlet
Wastegate
Divided
Wastegated turbine assembly does not include bolts, clamps, or actuator
771300-0006
0.63
T3
5 bolt
Wastegated
N
771300-0005
0.82
T3
5 bolt
Wastegated
N
771300-0004
1.06
T3
5 bolt
Wastegated
N
GT3071R
Download Section
The latest Garrett technologies featuring many advanced features.
The latest Garrett technologies featuring many advanced features.
Compressor Map
Exhaust Flow Chart
About Garrett GT Series Turbochargers
Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
