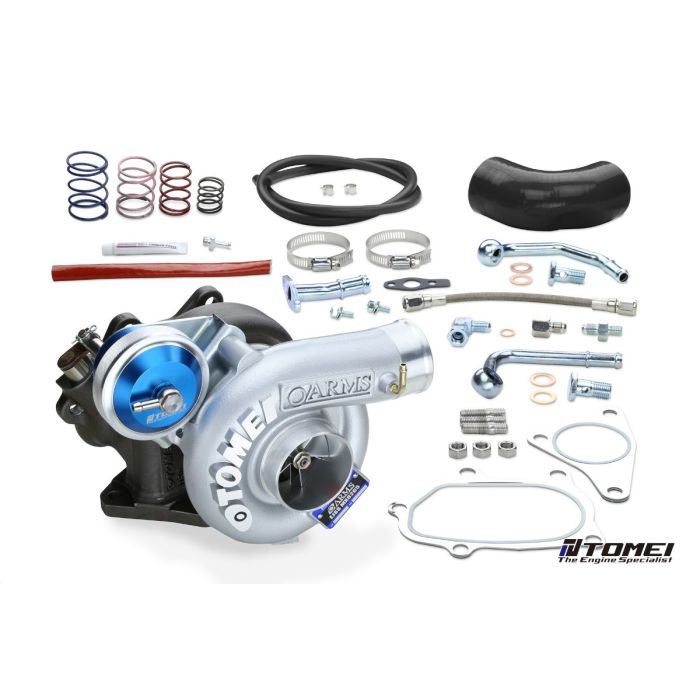

Tomei MX7760 Turbo Kit Subaru EJ Single Scroll Subaru WRX | STI 02-22- TOME-TB401A-SB01A
Upgrade your Subaru WRX/STI (02-22) with the Tomei MX7760 Turbo Kit. This high-performance kit features:
- 380HP capability
- Lightweight CNC Billet Compressor Wheel for improved airflow and turbo spool
- Multi Range Billet Actuator with 6 adjustable springs for precise boost control
- Durable aerospace-grade materials
- Enhanced turbine and compressor housing design
The new Tomei ARMS Mx-Series Turbocharger improves upons Tomei's original M-Series turbocharger design with the inroduction of a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!
The Tomei ARMS Mx8265 Turbocharger kit for the EJ20/25 is a 380HP capable kit
CNC Billet Compressor Wheel
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Compressor Wheel
- (A) IND (mm) : 52.6
- (B) ExD (mm) : 68.0
- Trim : 60
- Blades : 6
- Material : A2618
- Production : CNC Billet
- (C) ExD (mm) : 49.1
- (D) IND (mm) : 56.0
- Trim : 77
- Blades : 12
- Material : K418
- Production : Cast
- IND (mm) : 53.6
- ExD (mm) : 41.63
- IND : 45.0
- ExD : EJ
- A/R : 0.57
- 1.0kgf/cm2
- Subaru WRx | STI 02-22
- All images are representational only, actual wheels may differ slightly.
