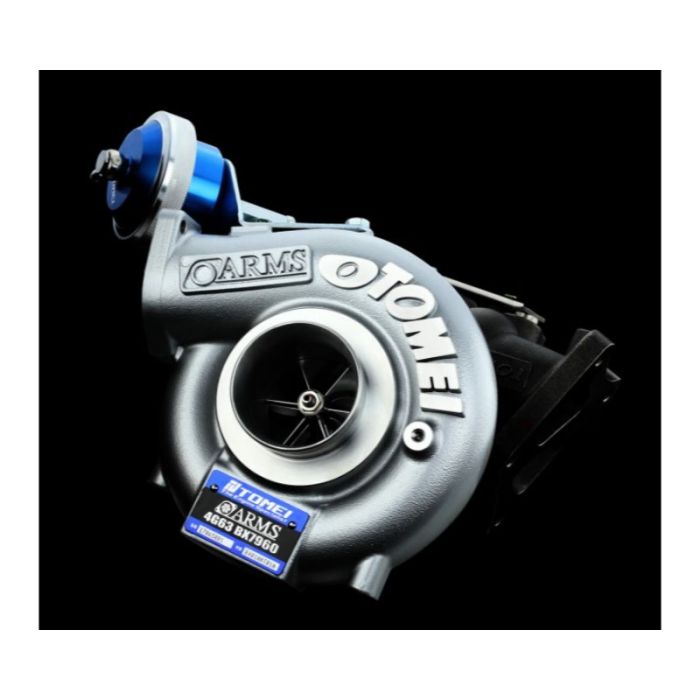

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX7960 Mitsubishi 4G63 EVO 4-9- TOME-TB403A-MT01A
$1,780.00
sku
TOME-TB403A-MT01A
Upgrade your Mitsubishi 4G63 EVO 4-9 with the Tomei Ball Bearing BX B/B Turbocharger Kit. Experience enhanced performance with these key features:
- **CNC Billet Compressor Wheel**: Aerospace-grade, lightweight design for improved airflow and turbo spool.
- **Multi Range Billet Actuator**: Offers precise boost adjustments with 6 springs for customization.
- **Target Horsepower**: Achieve up to 400 HP.
- **Ball Bearing Design**: Ensures smooth and efficient operation.
- **Durable Construction**: Made from high-quality materials for long-lasting performance.
Transform your driving experience with this advanced turbocharger kit.
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- Target Hp (Hp): 400
- Bearing Type: Ball Bearing
- Initial Boost Setting (Kgf/Cm2): 1.0
- Compressor Wheel
- Ind(Mm): 52.6
- Exd(Mm): 68.0
- Trim: 60
- Blades: 6/6
- Material: A2618
- Production: CNC Billet
- Turbine Wheel
- Exd(Mm): 54.0
- Ind(Mm): 61.0
- Trim: 79
- Blades: 9
- Material: K418
- Production: Cast
- Compressor Housing
- Ind(Mm): 61.85
- Exd(Mm): 50.0
- A/R: 0.78
- Turbine Housing
- Ind(Mm): 4G63
- Exd(Mm): 4G63
- A/R: 0.77
- Mitsubishi 4G63 EVO 4-9
| Brand | Tomei |
|---|
