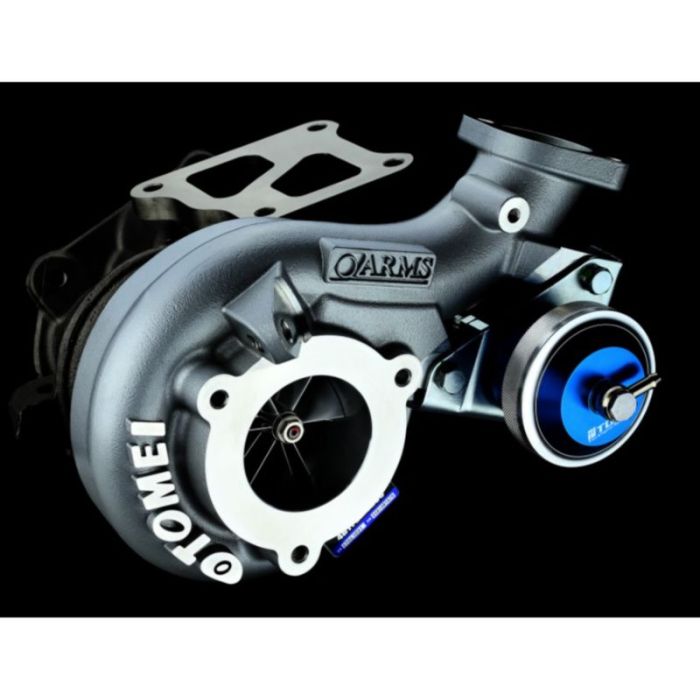

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8280 Mitsubishi 4B11 EVO 10- TOME-TB403A-MT02A
Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8280 for Mitsubishi 4B11 EVO 10
- Boosts horsepower to 450 HP
- Ball bearing design for faster spool
- CNC Billet Compressor Wheel for improved airflow
- Multi Range Billet Actuator with 6 adjustable springs
- Durable aerospace-grade materials
- Easy hose routing with swivel type nipple
- Precision-engineered for optimal performance
- Mitsubishi 4B11 EVO 10
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- Target Hp (Hp): 450
- Bearing Type: Ball Bearing
- Initial Boost Setting (Kgf/Cm2): 1.0
- Compressor Wheel
- Ind(Mm): 61.4
- Exd(Mm): 82.0
- Trim: 56
- Blades: 6/6
- Material: A2618
- Production: CNC Billet
- Turbine Wheel
- Exd(Mm): 58.8
- Ind(Mm): 67.0
- Trim: 77
- Blades: 9
- Material: K418
- Production: Cast
- Compressor Housing
- Ind(Mm): 62.4
- Exd(Mm): 40.2
- A/R: 0.51
- Turbine Housing
- Ind(Mm): 4B11
- Exd(Mm): 4B11
- A/R: 0.89
- Mitsubishi 4B11 EVO 10
