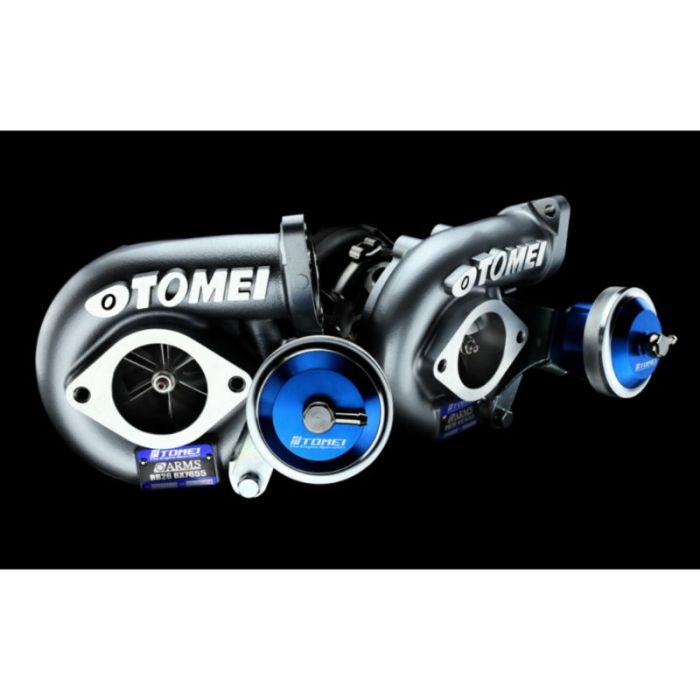

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX7655 Nissan RB26DETT- TOME-TB403A-NS05A
Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX7655 for Nissan RB26DETT
- Boosts target HP to 580
- Ball bearing type for smoother performance
- Billet compressor wheel for improved airflow and turbo spool
- Multi-range billet actuator with 6 adjustable springs
- Durable aerospace-grade materials
- Easy hose routing with swivel type nipple
- Precision CNC billet and cast production
- Perfect fit for Nissan RB26DETT
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- TARGET HP (HP): 580
- BEARING TYPE: BALL BEARING
- INITIAL BOOST SETTING (kgf/cm2): 1.0
- COMPRESSOR WHEEL
- IND(mm): 50.3
- EXD(mm): 68.0
- TRIM: 55
- BLADES: 6/6
- MATERIAL: A2618
- PRODUCTION: CNC BILLET
- TURBINE WHEEL
- EXD(mm): 47.5
- IND(mm): 56.0
- TRIM: 72
- BLADES: 9
- MATERIAL: K418
- PRODUCTION: CAST
- COMPRESSOR HOUSING
- IND(mm): 51.3
- EXD(mm): 38.75
- A/R: 0.74
- TURBINE HOUSING
- IND(mm): T25
- EXD(mm): RB26DETT
- A/R: 0.73
- Nissan RB26DETT
| Brand | Tomei |
|---|
