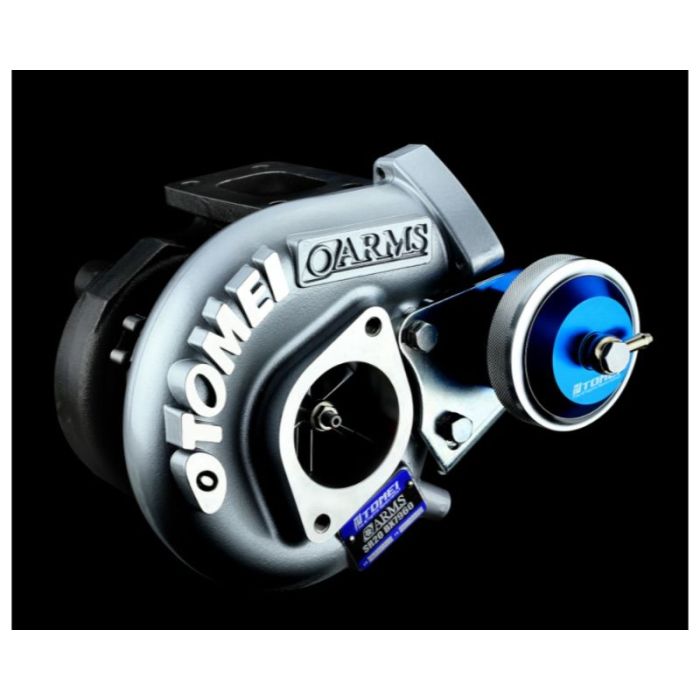

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX7960 Nissan SR20DET- TOME-TB403A-NS08A

CNC Billet Compressor Wheel:

The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

Multi Range Billet Actuator:

A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.

Description:

• TARGET HP (HP): 400
• BEARING TYPE: BALL BEARING
• INITIAL BOOST SETTING (kgf/cm2): 1.0
• COMPRESSOR WHEEL
• IND(mm): 52.6
• EXD(mm): 68.0
• TRIM: 60
• BLADES: 6/6
• MATERIAL: A2618
• PRODUCTION: CNC BILLET
• TURBINE WHEEL
• EXD(mm): 54.0
• IND(mm): 61.0
• TRIM: 79
• BLADES: 9
• MATERIAL: K418
• PRODUCTION: CAST
• COMPRESSOR HOUSING
• IND(mm): 53.5
• EXD(mm): 38.75
• A/R: 0.62
• TURBINE HOUSING
• IND(mm): T25
• EXD(mm): SR20DET
• A/R: 0.57

• Nissan SR20DET
