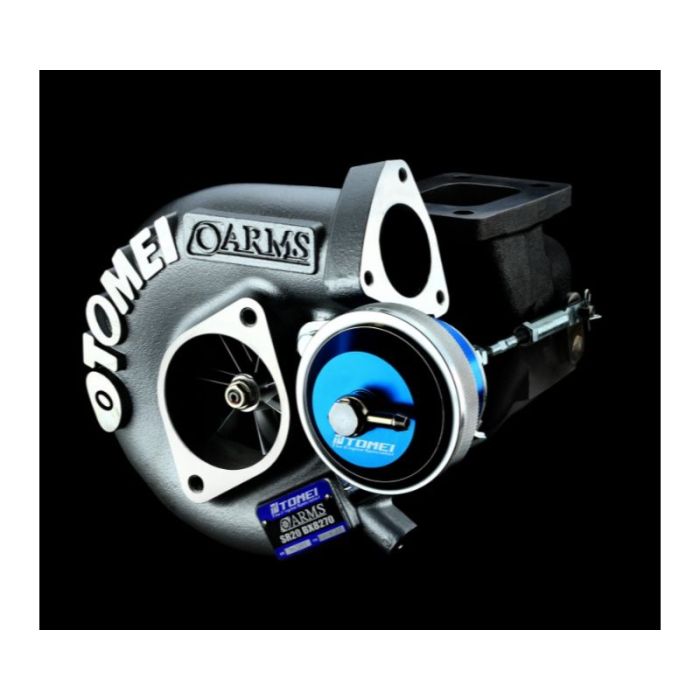

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8270 Nissan SR20DET- TOME-TB403A-NS08B
Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8270 Nissan SR20DET- TOME-TB403A-NS08B
- Boosts horsepower up to 450 HP
- Ball bearing design for faster spool
- CNC Billet Compressor Wheel for improved airflow
- Multi Range Billet Actuator with 6 adjustable springs
- Durable aerospace-grade materials
- Perfect fit for Nissan SR20DET
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- TARGET HP (HP): 450
- BEARING TYPE: BALL BEARING
- INITIAL BOOST SETTING (kgf/cm2): 1.0
- COMPRESSOR WHEEL
- IND(mm): 59.0
- EXD(mm): 76.2
- TRIM: 60
- BLADES: 6/6
- MATERIAL: A2618
- PRODUCTION: CNC BILLET
- TURBINE WHEEL
- EXD(mm): 58.8
- IND(mm): 67.0
- TRIM: 77
- BLADES: 9
- MATERIAL: K418
- PRODUCTION: CAST
- COMPRESSOR HOUSING
- IND(mm): 60.0
- EXD(mm): 38.5
- A/R: 0.62
- TURBINE HOUSING
- IND(mm): T25
- EXD(mm): SR20DET
- A/R: 0.57
- Nissan SR20DET
| Brand | Tomei |
|---|
