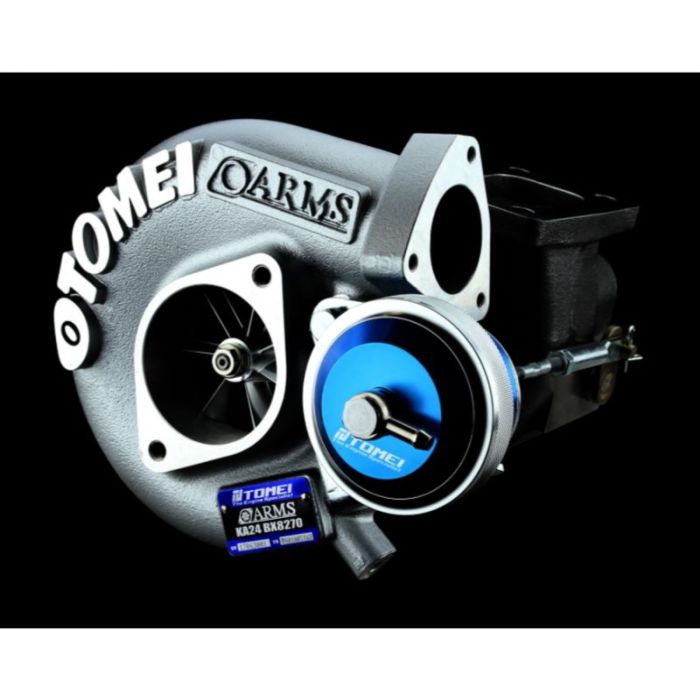

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8270 Nissan KA24DE- TOME-TB403A-NS16D
Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8270 for Nissan KA24DE
- Target HP: 450 HP
- Ball Bearing Type: Enhanced durability and performance
- Boost Setting: Initial boost at 1.0 kgf/cm²
- CNC Billet Compressor Wheel: Aerospace-grade, lightweight, improved airflow
- Multi Range Billet Actuator: 6 springs for fine boost adjustments
- Fitment: Specifically designed for Nissan KA24DE
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- TARGET HP (HP): 450
- BEARING TYPE: BALL BEARING
- INITIAL BOOST SETTING (kgf/cm2): 1.0
- COMPRESSOR WHEEL
- IND(mm): 59.0
- EXD(mm): 76.2
- TRIM: 60
- BLADES: 6/6
- MATERIAL: A2618
- PRODUCTION: CNC BILLET
- TURBINE WHEEL
- EXD(mm): 58.8
- IND(mm): 67.0
- TRIM: 77
- BLADES: 9
- MATERIAL: K418
- PRODUCTION: CAST
- COMPRESSOR HOUSING
- IND(mm): 60.0
- EXD(mm): 38.5
- A/R: 0.62
- TURBINE HOUSING
- IND(mm): T25
- EXD(mm): SR20DET
- A/R: 0.57
- Nissan KA24DE
| Brand | Tomei |
|---|
