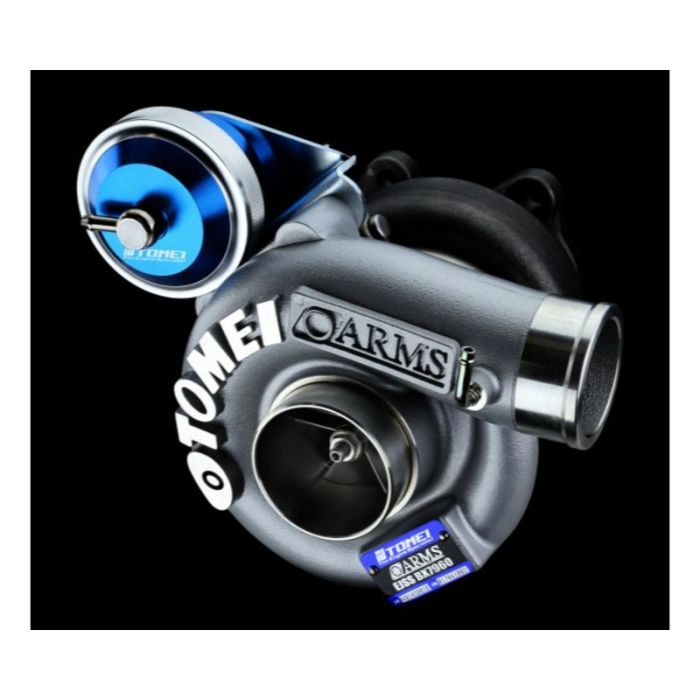

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX7960 EJ Single Scroll- TOME-TB403A-SB01B
Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX7960 EJ Single Scroll- TOME-TB403A-SB01B
- Boosts up to 400 HP
- Ball Bearing for smoother performance
- Billet Compressor Wheel for improved airflow and turbo spool
- Multi Range Billet Actuator with 6 adjustable springs
- Durable aerospace-grade materials
- Easy hose routing with swivel type nipple
- Perfect fit for EJ Single Scroll engines
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- Target Hp (Hp): 400
- Bearing Type: Ball Bearing
- Initial Boost Setting (Kgf/Cm2): 1.0
- Compressor Wheel
- Ind(Mm): 52.6
- Exd(Mm): 68.0
- Trim: 60
- Blades: 6/6
- Material: A2618
- Production: CNC Billet
- Turbine Wheel
- Exd(Mm): 54.0
- Ind(Mm): 61.0
- Trim: 79
- Blades: 9
- Material: K418
- Production: Cast
- Compressor Housing
- Ind(Mm): 53.6
- Exd(Mm): 41.63
- A/R: 0.78
- Turbine Housing
- Ind(Mm): 45.0
- Exd(Mm): EJ
- A/R: 0.57
- EJ Single Scroll
