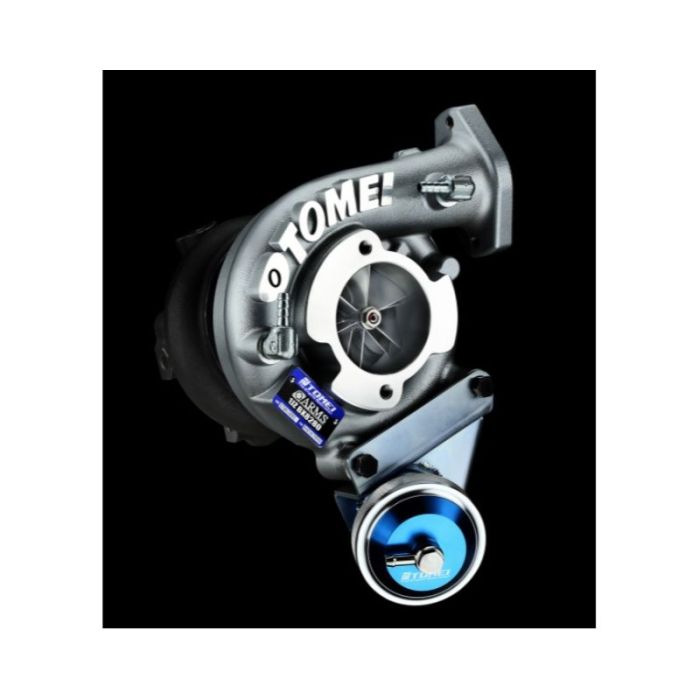

Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8280 Toyota 1JZ-GTE- TOME-TB403A-TY04A
Tomei Ball Bearing BX B/B Turbocharger Kit Arms BX8280
Upgrade your Toyota 1JZ-GTE with this high-performance turbocharger kit. Designed for optimal airflow and turbo spool, it features:
- Target HP: 450 HP
- Ball Bearing Type: Enhanced durability and performance
- CNC Billet Compressor Wheel: Aerospace-grade, lightweight, and efficient
- Multi Range Billet Actuator: Fine boost adjustments with 6 springs
- Fitment: Toyota 1JZ-GTE
CNC Billet Compressor Wheel:
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.
Multi Range Billet Actuator:
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.
Description:
- Target Hp (Hp): 450
- Bearing Type: Ball Bearing
- Initial Boost Setting (Kgf/Cm2): 1.0
- Compressor Wheel
- Ind(Mm): 61.4
- Exd(Mm): 82.0
- Trim: 56
- Blades: 6/6
- Material: A2618
- Production: CNC Billet
- Turbine Wheel
- Exd(Mm): 58.8
- Ind(Mm): 67.0
- Trim: 77
- Blades: 9
- Material: K418
- Production: Cast
- Compressor Housing
- Ind(Mm): 62.4
- Exd(Mm): 45.46
- A/R: 0.54
- Turbine Housing
- Ind(Mm): 47.89
- Exd(Mm): 1JZ
- A/R: 0.67
- Toyota 1JZ-GTE
