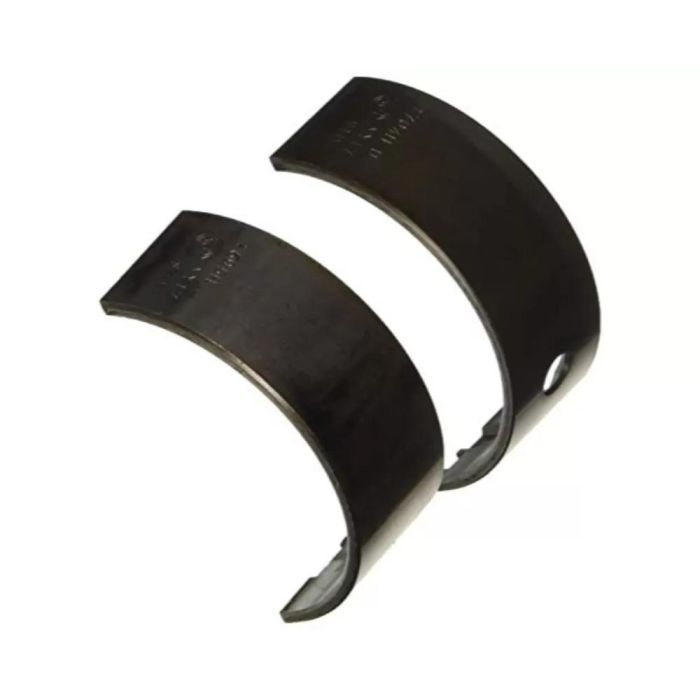

ACL Ford 221/255/260/289/302 Windsor/Windsor 5.0L Standard Size Main Bearing Set - 5M590H-STD
$92.35
sku
acl5M590H-STD
More than 2 in stock
Enhance your engine's performance with the ACL Ford 221/255/260/289/302 Windsor/Windsor 5.0L Standard Size Main Bearing Set. Engineered for high RPM conditions, these tri-metal bearings offer superior durability and reliability.
- High strength overlay for improved fatigue resistance
- Hardened steel backs for enhanced support and retention
- Optimized heat transfer and grip with flash plating elimination
- 3/4 grooved design for better oil flow and load distribution
- Consistent wall tolerances for precise clearances
- Enlarged ID chamfers for performance crankshafts
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications.
Features:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
- Size: STD, 001, 009, 010, 011, 020/li>
- Oil Clearance: Standard
- Half Type: Identical Halves
- Material: Tri-metal Hardened Steel Backs
- Min Std Shaft Size: 2.2482in / 57.104 mm
- Max Std Shaft Size: 2.249in / 57.125 mm
- Min Std Tunnel Size: 2.4412in / 62.006 mm
- Max Std Tunnel Size: 2.442in / 62.027 mm
- Max Wall at Crown: 0.0957in / 2.431 mm
- Max Overall Length: 0.885in / 22.48 mm
