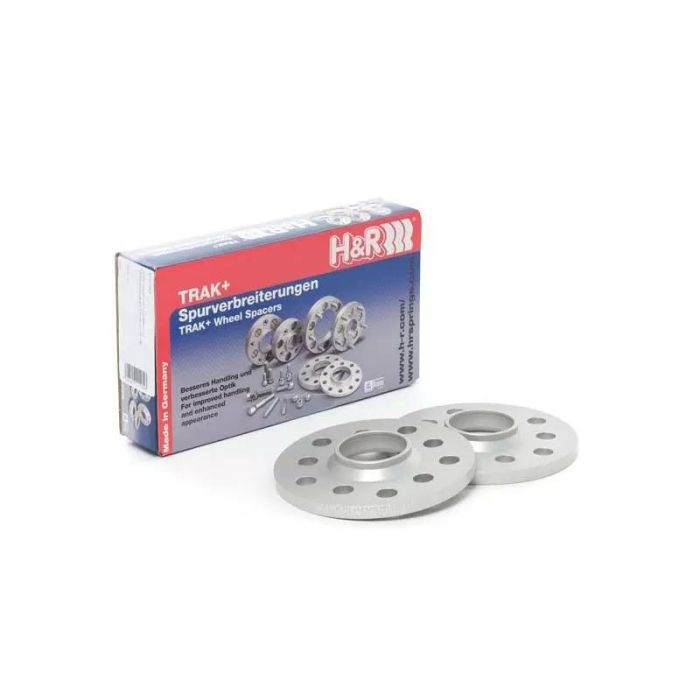

H&R Trak+ 10mm DRS Wheel Adaptor Bolt 5/114.3 Center Bore 66.2 Stud Thread 12x1.25 - Black - 2065662SW

Wider is Better®! H&R TRAK+® Wheel Spacers move your wheels and tires outwards so they are more flush with the fender-instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+® you can fill the gap in your fenders and GO WIDE!

TRAK+® Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+® Wheel Spacers are hubcentric and feature a full contact hub-just like the factory hub-for even load force distribution and lateral support.

Select applications now also available in black hard anodized.

Features:

• Widen vehicle track with TRAK+® Wheel Spacers
• 'Perfect fit' hubcentric design
• Durable lightweight aluminum/magnesium alloy
• Affordable and easy to install
• Bolt Pattern: 5/114.3
• Center Bore: 66.2
• Thread Type: 12x1.25
• Spacer Type: DRS
• Width: 10mm
• Stud Type
• Black

Fitment:

• Nissan Maxima Type A33 00-03

Notes:

Please view diagram Note 18 above

Depending on model, axle and year, Nissan vehicles have different diameters in the shoulder of the studs. The following list provides notes and measurements of the shoulder studs required for installation. The wheel spacers shown in the catalog will be supplied with shoulder bolts d = 14.25. If you need d = 12.85, please add a "1" at the end of the part number.

DRS Wheel Spacers - Nissan DRS wheel spacers / required DRS shoulder
Vehicle	Model	Shoulder	Front Axle/Shoulder	Rear Axle
SENTRA	B13	GA 16 + SR20 DE	large 14.25mm	large 14.25 mm
100	NX	B13 GA 16 + SR 20 DE	large 14.25 mm	large 14.25 mm
ALMERA	N15	all	large 14.25mm	large 14.25 mm
PRIMERA	P10	2WD	large 14.25 mm	large 14.25 mm
PRIMERA	P11	all	large 14.25 mm	large 14.25 mm
200 SX	S13	CA18 T	small 12.85 mm	small 12.85 mm
200 SX	S14	SR 20 DET	large 14.25 mm	small 12.85 mm
300 ZX	Z32	VG 30 DTT	large 14.25 mm	small 12.85 mm
MAXIMA	J30	up to 10/91	small 12.85mm	small 12.85 mm
		up to 12/94	large 14.25 mm	small 12.85 mm
		from 01/95	large 14.25 mm	large 14.25 mm
MAXIMA	A32	VQ 20 + 30DE	large 14.25 mm	large 14.25 mm
