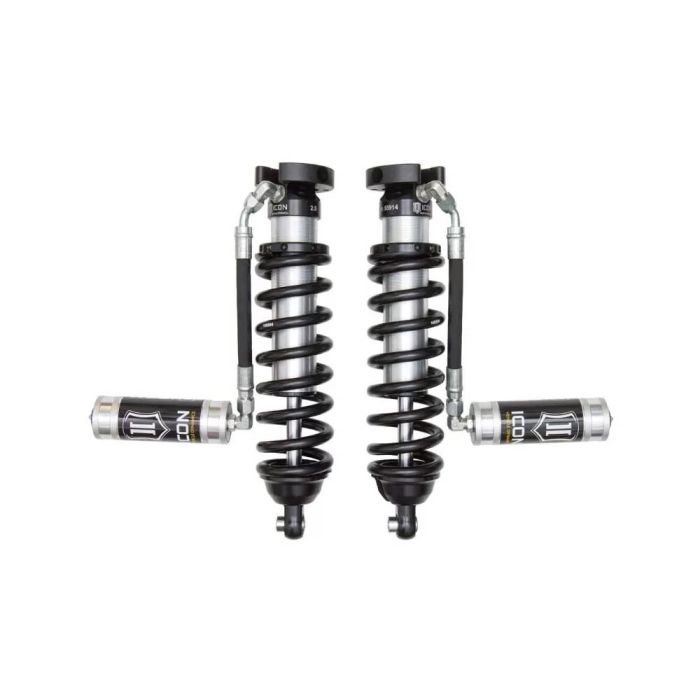

ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR Coilover Kit - 58715
Upgrade your 1996-2004 Toyota Tacoma with the ICON 2.5 VS Extended Travel RR Coilover Kit. Experience superior performance on and off-road with these high-quality coilovers.
- 0-3" lift height adjustability
- Improved ride quality and control
- Increased wheel travel
- Remote reservoirs for cooler operation
- Durable 6061 aircraft-grade aluminum components
- 100% bolt-on installation
- Toyota Tacoma 4WD 1995-2004
- Toyota Tacoma Pre Runner RWD 1998-2004
ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
View Installation Instructions
Features:
- Increased wheel travel over stock
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Improved ride quality over stock on and off-road
- Height-adjustable coilovers offer 0-3" of lift height adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Damping: NO
- Adjustable Height: Yes
- Body Diameter: 2,5 IN
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Material: Steel
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
- Remote Reservoir: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650 PPI
- Upper Mount Type: Mounting Plate
- Oem Wheels & Tires Fitment: Yes
- Toyota Tacoma 4WD 1995-2004
- Toyota Tacoma Pre Runner RWD 1998-2004
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103404158 |
