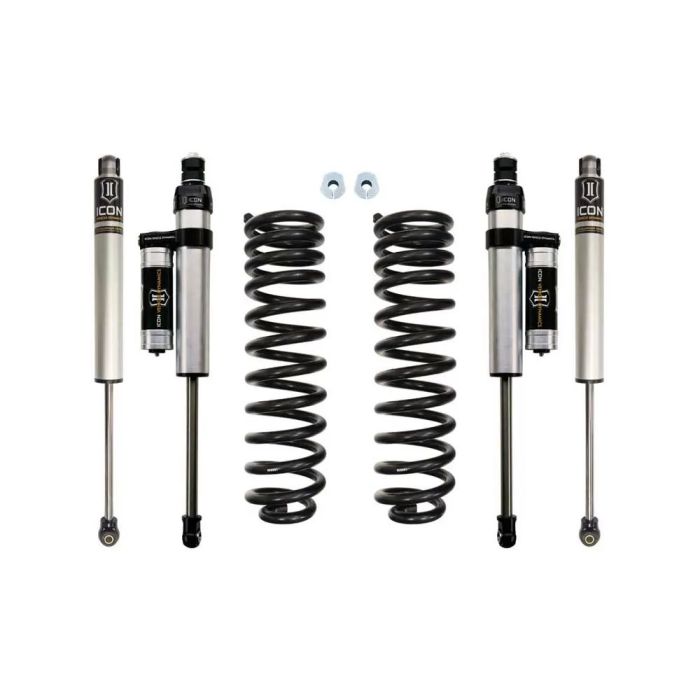

ICON 05-16 Ford F-250/F-350 2.5in Stage 2 Suspension System - K62501

The ICON 2.5" suspension system is a great way to level your 4WD 2005-2016 Ford F-250 | F-350 Super Duty while improving ride quality and performance. This Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of dual rate coil springs, alignment cams for adding caster, and ICON 2.5 Aluminum Series piggyback reservoir shocks up front and 2.0 Aluminum Series internal reservoir shocks in the rear. ICON 2.5" reservoir shocks up front ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

View Installation Instructions

Features:

• ICON engineered dual rate coil springs with match tuned performance shocks
• Application Specific Alignment Cams ensure proper Caster alignment
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that coil springs won't sag
• No drive shaft modifications required
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

• Add-On Part: 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Bushings Included: Yes
• Coils Quantity Front: 2
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Springs Are Rated For Diesel Engines Only
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• 2005-2016 F-250S Require 4" Rear Blocks With 15" U-Bolt Kit To Sit Level With 2.5" Lifted Front. Icon Block Kit Part # 194275 And U-Bolt Kit Part # 37003 (2005-2010 Models) Or Part # 67003 (2011-2016 Models) Are Recommended.

• Ford F-250 Super Duty 4WD 2005-2016
• Ford F-350 Super Duty 4WD 2005-2016
