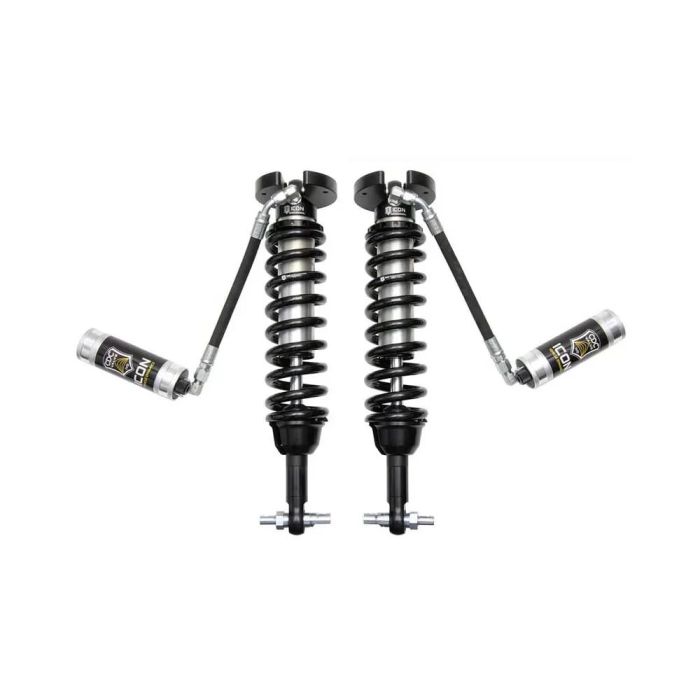

ICON 2019+ GM 1500 Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit - 71656C

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 GM Silverado/Sierra 1500. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended offroad use
• ICON CDCV equipped for external tunability of your shocks
• Height-adjustable coilovers offer 1.5-3.5" of front lift height
• ICON engineered Eibach coil springs
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling or welding necessary for installation

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Tires: (Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

• Oem Wheels & Tires Fitment: Yes
• Aftermarket Front Upper Control Arms Required For Installation. Icon Part Numbers 78620Dj Or 78720Dj Recommended.
• Chevrolet Silverado Trail Boss And Gmc Sierra 1500 At4 Lift Height Range 0-1.5" Over Stock
• Models Equipped With 6-Cylinder Diesel Engine Will Have Lift Height Adjustment Range Reduced By Approximately .5"
• Not Compatible With Models Equipped With 4-Cylinder Engine
• Not Compatible With Models Equipped With Adaptive Ride Control (Arc)
• Not Compatible With Models Equipped With Torsion Bar Front Springs
• Not Compatible With Silverado 1500 Zr2 Or Sierra 1500 At4X Sub-Models

• Chevrolet Silverado 1500 LTD LT Trail Boss 2022-2022
• Chevrolet Silverado 1500 LTD High Country 2022-2022
• Chevrolet Silverado 1500 LTD WT 2022-2022
• Chevrolet Silverado 1500 LTD LTZ 2022-2022
• Chevrolet Silverado 1500 LTD LT 2022-2022
• Chevrolet Silverado 1500 LTD SSV 2022-2022
• Chevrolet Silverado 1500 LTD LT 2022-2022
• Chevrolet Silverado 1500 LTD LTZ 2022-2022
• Chevrolet Silverado 1500 LTD LT Trail Boss 2022-2022
• Chevrolet Silverado 1500 LTD Custom Trail Boss 2022-2022
• Chevrolet Silverado 1500 LTD High Country 2022-2022
• Chevrolet Silverado 1500 LTD RST 2022-2022
• Chevrolet Silverado 1500 LTD RST 2022-2022
• Chevrolet Silverado 1500 LT 2019-2023
• Chevrolet Silverado 1500 RST 2019-2023
• Chevrolet Silverado 1500 Custom Trail Boss 2019-2023
• Chevrolet Silverado 1500 LT Trail Boss 2019-2023
• Chevrolet Silverado 1500 SSV 2019-2021
• Chevrolet Silverado 1500 WT Cab Regular 2019-2020
• Chevrolet Silverado 1500 WT Doble Cabina 2019-2020
• Chevrolet Silverado 1500 High Country 2019-2023
• Chevrolet Silverado 1500 WT 2019-2023
• Chevrolet Silverado 1500 Custom 2019-2023
• Chevrolet Silverado 1500 LTZ 2019-2023
• Chevrolet Silverado 1500 LT 2020-2023
• Chevrolet Silverado 1500 LTZ 2020-2023
• Chevrolet Silverado 1500 RST 2020-2023
• Chevrolet Silverado 1500 WT Gas 2020-2021
• Chevrolet Silverado 1500 High Country 2020-2023
• Chevrolet Silverado 1500 Custom Trail Boss 2022-2023
• Chevrolet Silverado 1500 LT Trail Boss 2022-2023
• Chevrolet Silverado 1500 Base 2023-2023
• Chevrolet Silverado 1500 PPV 2023-2023
• GMC Sierra 1500 Limited SLE 2022-2022
• GMC Sierra 1500 Limited SLT 2022-2022
• GMC Sierra 1500 Limited SLT 2022-2022
• GMC Sierra 1500 Limited SLE 2022-2022
• GMC Sierra 1500 Limited AT4 2022-2022
• GMC Sierra 1500 Limited Elevation 2022-2022
• GMC Sierra 1500 Limited Elevation 2022-2022
• GMC Sierra 1500 Limited Pro 2022-2022
• GMC Sierra 1500 Limited AT4 2022-2022
• GMC Sierra 1500 Base Gas 2019-2021
• GMC Sierra 1500 Base 2019-2021
• GMC Sierra 1500 SLT 2019-2023
• GMC Sierra 1500 Elevation 2019-2023
• GMC Sierra 1500 SLE 2019-2023
• GMC Sierra 1500 AT4 2019-2023
• GMC Sierra 1500 Elevation 2020-2023
• GMC Sierra 1500 SLE 2020-2023
• GMC Sierra 1500 AT4 2020-2023
• GMC Sierra 1500 SLT 2020-2023
• GMC Sierra 1500 Pro 2022-2023
