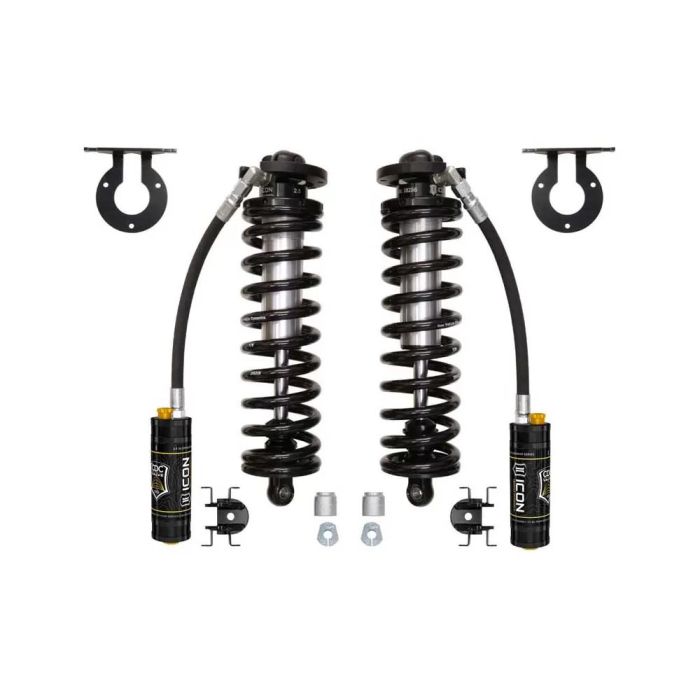

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 2.5-3in 2.5 Series VS RR CDCV Bolt-In Conversion Kit - 61720C

ICON's 2.5 VS Series Remote Reservoir CDCV Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250, F-350, and F-450 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. ICON's CDC (Compression Damping Control) Valve option adds to the adjustability of these coilover conversion kits, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob.

View Installation Instructions

Features:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• CDCV technology allows for quick and easy compression damping adjustment

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Gas
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

• Factory Wheels & Tires Fitment: Yes
• 2005-2016 F-250S Require 4" Rear Blocks With 15" U-Bolt Kit To Sit Level With 2.5" Lifted Front. Icon Block Kit Part # 194275 And U-Bolt Kit Part # 37003 (2005-2010 Models) Or Part # 67003 (2011-2016 Models) Are Recommended.
• 17-19 Super Duty Models Will Have Front Lift Height Range Of 2.5-3" Over Stock
• 2020-2023 Super Duty Models Equipped With Tremor Package Will Have Front Lift Height Range Of 2.25-2.75" Over Stock
• 2020-2023 Super Duty Models Without Tremor Package Will Have Front Lift Height Range Of 3.25-3.75" Over Stock
• Brake Line Kit (Part # 61111) Is Optional For End Users With 17-23 Models Who Do Not Want To Bend The Factory Steel Lines Or Are Looking For A Braided Stainless Upgrade (Not Necessary For Complete Install)
• If Installing With Icon 2.5 Series Remote Reservoir Secondary Shocks, Reservoir Doubler Kit Part Number 611003 Is Also Required
• Only Compatible With 4Wd Models
• Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation
• Springs Are Rated For Diesel Engines Only

• Ford F-250 Super Duty King Ranch 4WD 2005-2023
• Ford F-250 Super Duty Lariat 4WD 2005-2023
• Ford F-250 Super Duty XL 4WD 2005-2023
• Ford F-250 Super Duty XLT 4WD 2005-2023
• Ford F-250 Super Duty Harley-Davidson Edition 4WD 2005-2010
• Ford F-250 Super Duty FX4 2008-2014
• Ford F-250 Super Duty Cabela's 2009-2010
• Ford F-250 Super Duty Platinum 2013-2023
• Ford F-250 Super Duty Base 2015-2016
• Ford F-250 Super Duty Limited 2018-2023
• Ford F-350 Super Duty King Ranch 4WD 2005-2023
• Ford F-350 Super Duty Lariat 4WD 2005-2023
• Ford F-350 Super Duty XL 4WD 2005-2023
• Ford F-350 Super Duty XLT 4WD 2005-2023
• Ford F-350 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-350 Super Duty FX4 2008-2009
• Ford F-350 Super Duty Cabela's 2009-2010
• Ford F-350 Super Duty Platinum 4WD 2013-2023
• Ford F-350 Super Duty Limited 2018-2023
• Ford F-450 Super Duty 4 X 4 2005-2023
