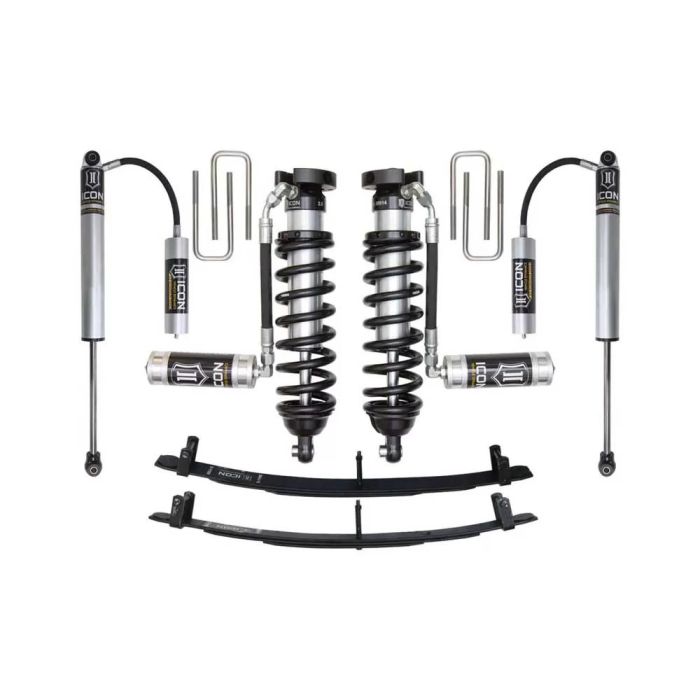

ICON 95.5-04 Toyota Tacoma 0-3in Stage 3 Suspension System - K53013
Elevate your 1995.5-2004 Toyota Tacoma with the ICON Stage 3 Suspension System. Designed for superior performance, this system enhances both on-road comfort and off-road capability. Key features include:
- Adjustable 0-3" lift for larger tires
- 2.5" coilover shocks with remote reservoir for optimal cooling
- Durable 6061 aircraft-grade aluminum components
- Corrosion-resistant shock body with hardened chrome shaft
- 100% bolt-on installation, no modifications needed
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5" coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 0-3" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
View Installation Instructions
Features:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable remote reservoir coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" hardened chrome shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear remote reservoir shock with 5/8" polished chrome plated steel shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Bushings Included: Yes
- Coils Quantity Front: 2
- Grade Type: Performance
- Leaf Spring Leaf Quantity: 3
- Maximum Lift: 3 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5" Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650 PPI
- 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Oem Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- Toyota Tacoma 4WD 1995-2004
- Toyota Tacoma Pre Runner RWD 1998-2004
| Brand | Icon Vehicle Dynamics |
|---|
