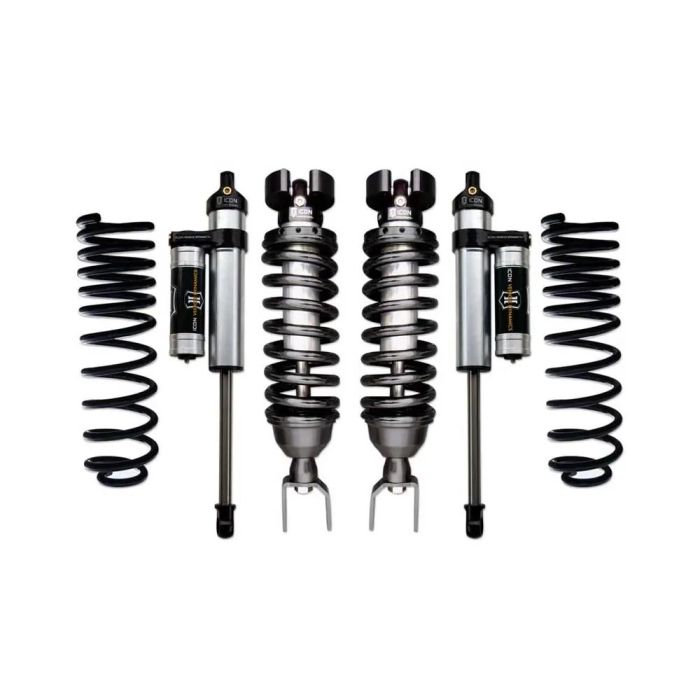

ICON 09-18 Ram 1500 4WD .75-2.5in Stage 3 Suspension System - K213003

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5" coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from .75-2.5" of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Bushings Included: Yes
• Coil Spring End 1 Type: Open
• Coil Spring End 2 Type: Open
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift: 2.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" BS / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Application Note #99: Air Bags Recommended With Performance Rear Springs If Vehicle Used For Towing
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Compatible With 2019-2022 Ram 1500 Classic Models. Lift Height Range Is .75-2.5" Over Stock
• Not Compatible With Models Equipped With Oe Air Suspension

• Ram 1500 Big Horn 4WD 2011-2018
• Ram 1500 Laramie 4WD 2011-2018
• Ram 1500 Laramie Longhorn 4WD 2011-2018
• Ram 1500 Outdoorsman 4WD 2011-2018
• Ram 1500 SLT 4WD 2011-2018
• Ram 1500 ST 4WD 2011-2018
• Ram 1500 Sport 4WD 2011-2018
• Ram 1500 Tradesman 4WD 2011-2018
• Ram 1500 SXT 4WD 2011-2018
• Ram 1500 Express 4WD 2012-2018
• Ram 1500 Lone Star 4WD 2014-2018
• Ram 1500 Special Service 2014-2018
• Ram 1500 Laramie Limited 4WD 2014-2018
• Ram 1500 Classic Express 4WD 2019-2022
• Ram 1500 Classic SLT 4WD 2019-2022
• Ram 1500 Classic Special Service 2019-2022
• Ram 1500 Classic Tradesman 4WD 2019-2022
• Ram 1500 Classic Warlock 4WD 2019-2022
• Ram 1500 Classic ST 4WD 2019-2020
• Ram 1500 Classic Big Horn 4WD 2019-2019
• Ram 1500 Classic Laramie 4WD 2019-2019
• Ram 1500 Classic Lone Star 4WD 2019-2019
• Ram 1500 Classic SXT Plus 4WD 2019-2019
• Ram 1500 Classic Night Edition 4WD 2021-2021
• Dodge Ram 1500 Laramie 4WD 2009-2010
• Dodge Ram 1500 SLT 4WD 2009-2010
• Dodge Ram 1500 ST 4WD 2009-2010
• Dodge Ram 1500 Sport 4WD 2009-2010
• Dodge Ram 1500 TRX4 2009-2010
