ICON 05-22 Toyota Tacoma 0-2in Stage 3 Exp Suspension System Billet - K53222
Special Price
$2,693.35
Regular Price
$2,771.45
sku
icoK53222
More than 2 in stock
Upgrade your Tacoma with the ICON 05-22 Tacoma 0-2" Lift Stage 3 EXP Suspension System Billet. Designed for superior performance, this suspension system enhances off-road capability and ride quality. Crafted from high-quality billet materials, it offers durability and precision. Perfect for adventurers seeking a smoother, more controlled driving experience, whether on rugged trails or city streets. Elevate your ride with ICON's advanced engineering and enjoy the perfect blend of comfort and performance.

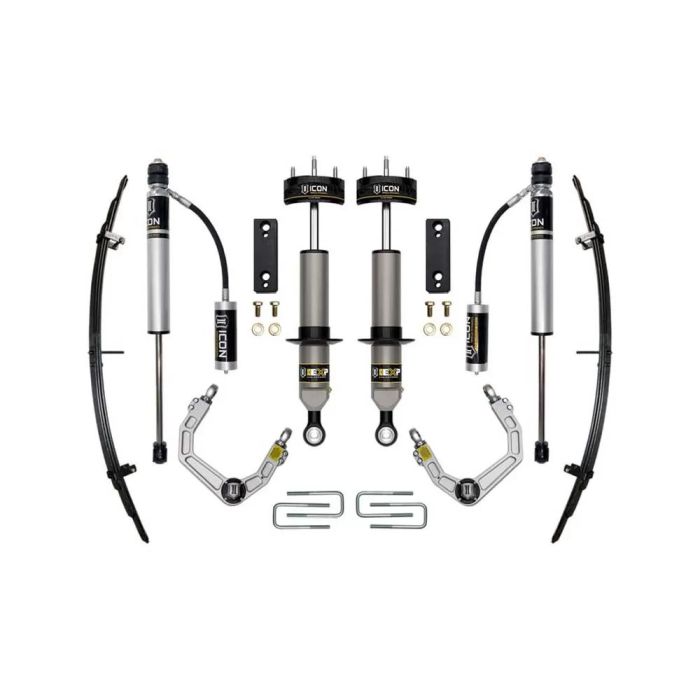

The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2005-2022 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
View Installation Instructions
Features:
- Vehicle specific design for 2005-2022 Toyota Tacoma
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2" of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
- Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5" of rear lift
- 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Bushings Included: Yes
- Grade Type: Performance
- Maximum Lift Front: 2 IN
- Maximum Lift Rear: 1.5 IN
- Minimum Lift Front: 0 IN
- Mounting Hardware Included: Yes
- Shocks Included: Yes
- Trimming Required For Recommended Tire Size
- Not Compatible With Trd Pro
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Oem Wheels & Tires Fitment: Yes
- Not Compatible With 2005-2015 Rear Wheel Drive Tacomas With 5 Wheel Lug Studs
- Not Compatible With 2021-2022 Tacoma Trail
- Toyota Tacoma Base 4WD 2005-2015
- Toyota Tacoma Pre Runner 2005-2015
- Toyota Tacoma SR5 Prerunner 2006-2009
- Toyota Tacoma TRD Sport Prerunner 2006-2009
- Toyota Tacoma Base Prerunner 2006-2006
- Toyota Tacoma TRD Sport 2010-2022
- Toyota Tacoma Edicion Especial 2016-2022
- Toyota Tacoma Limited 2016-2022
- Toyota Tacoma SR 2016-2022
- Toyota Tacoma SR5 2016-2022
- Toyota Tacoma TRD Off-Road 2016-2022
- Toyota Tacoma Sport 17-22
- Toyota Tacoma Nightshade 2021-2022
- Toyota Tacoma Base 2022-2022
| Brand | Icon Vehicle Dynamics |
|---|
