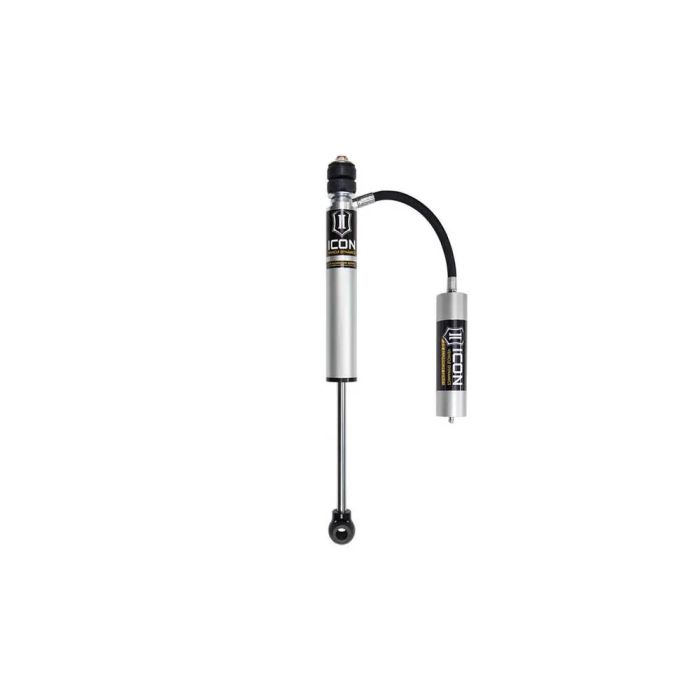

ICON 2022+ Toyota Tundra 0-1in Rear 2.0 Series Shocks VS RR - 56516R
Upgrade your Toyota Tundra or Sequoia with the ICON 2.0 VS Shock Remote Reservoir for superior on and off-road performance. Designed for durability and optimal ride quality, this shock absorber is perfect for both daily driving and weekend adventures.
- Premium 5WT shock oil for consistent damping
- Nitrogen charged monotube with remote reservoir
- 6061 aluminum components for strength and durability
- Polyurethane bushings for factory-type fitment
- Fully rebuildable and re-tunable
- Compatible with various lift heights
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
View Installation Instructions
Features:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8" chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- Fully rebuildable and re-tunable
- Adjustable Damping: Yes
- Body Diameter: 2 IN
- Boot Included: No
- Bore Diameter: 1.75 IN
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- Bushing Material: Rubber
- Cylinder Color: Silver
- Cylinder Material: Aluminum
- Damping Type: Oil
- Dust Shield: No
- External Reservoir: Yes
- Finish: Anodized
- Gas Charged: Yes
- Grade Type: Performance
- Hydraulic Lockout: No
- Includes Bump Stop: No
- Internal Construction Type: Single Tube
- Internal Rebound Spring: Yes
- Lower Mount Type: Eyelet
- Mounting Hardware Included: No
- Service Parts: 202003 - 2.0 REMOTE RESI REBUILD KIT
- Shaft Diameter: 0.625 IN
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eyelet
- Suspension Type: Spring
- Upper Mount Type: Stem
- Compatible With 0-1.5" Of Rear Lift On Non-Trd Tundras Or 0-1" Lift On Trd Tundras Equipped With Rear Coil Springs
- Compatible With 0-3" Of Rear Lift On 2023 Sequoias Equipped With Rear Coil Springs
- Compatible With 0-3" Of Rear Lift On Tundras Equipped With Rear Oe Load-Leveling Rear Height Control Air Suspension
- If Upgrading A Vehicle Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional
- Not Compatible With Tundra Trd Pro Or Sequoia Trd Pro
- Toyota Tundra Limited 2022-2023
- Toyota Tundra Platinum 2022-2023
- Toyota Tundra SR5 2022-2023
- Toyota Tundra 1794 Edition 2022-2023
- Toyota Tundra SR 2022-2023
- Toyota Tundra Limited TRD Off-Road 2022-2022
- Toyota Tundra SR TRD Off-Road 2022-2022
- Toyota Tundra SR5 TRD Off-Road 2022-2022
- Toyota Tundra Platinum 1794 Edition 2022-2022
- Toyota Sequoia SR5 2023-2023
- Toyota Sequoia Limited 2023-2023
- Toyota Sequoia Platinum 2023-2023
- Toyota Sequoia Capstone 2023-2023
- Toyota Sequoia TRD Off-Road 2023-2023
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103414676 |
