ICON 2019+ Ram 2500 4wd 2.5in Stage 1 Suspension System (Air Ride) - K212541A
Upgrade your 2014-Up Ram 2500 4WD with the ICON 2.5" Lift Stage 1 Suspension System. Enhance your ride quality and performance both on and off-road with this comprehensive kit.
- Dual rate front coil springs
- 2.0 Aluminum Series front and rear shocks
- Improved ride quality and performance
- Maintains towing capacity
- Less body roll than stock
- No drive shaft modifications needed
- Optional 2" Air Ride Kit for adjustable rear ride height

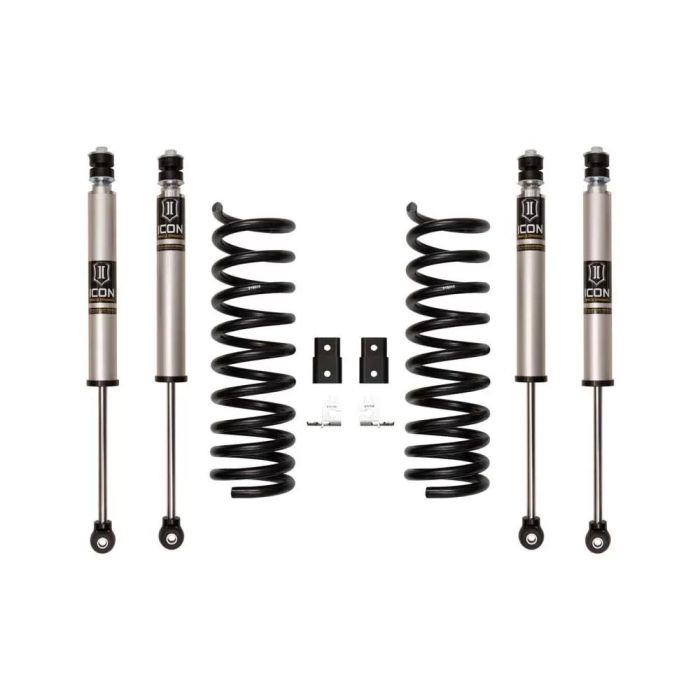

ICON's 2019 RAM 2500 4WD 2.5" Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.0 Aluminum Series front and rear shocks. This entry level system improves ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
View Installation Instructions
Features:
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Less body roll than stock
- No drive shaft modifications needed
- Optional ICON 2" Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height
- Add-On Part: 214212 - 14-UP RAM 2500 2.0" AIR RIDE KIT
- Bushings Included: Yes
- Coil Spring End 1 Type: Open
- Coil Spring End 2 Type: Open
- Coils Quantity Front: 2
- Dual Rate Coil Springs: Yes
- Grade Type: Performance
- Maximum Lift: 2.5 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25" BS / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" BS / 12mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Springs Are Rated For Diesel Engines Only
- Application Note #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
- Oem Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- Ram 2500 4WD 2014-2022
| Brand | Icon Vehicle Dynamics |
|---|
