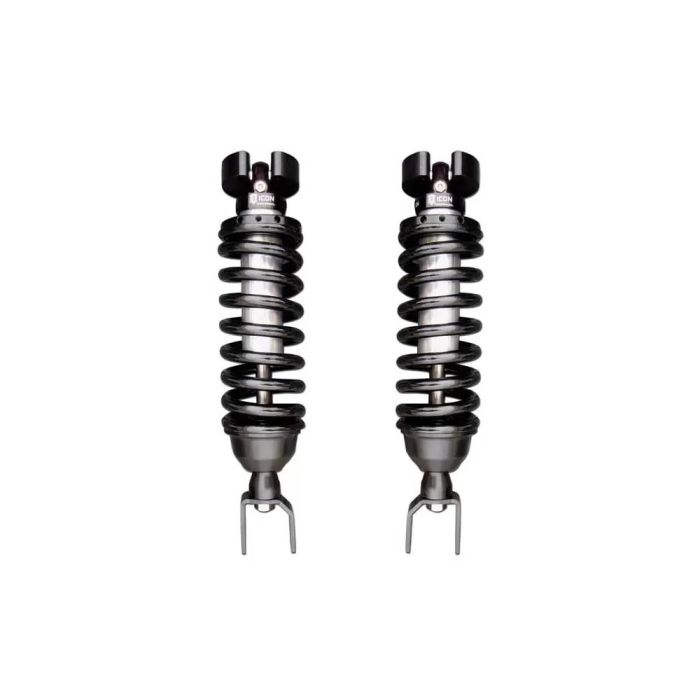

ICON 2019+ Ram 1500 2/4WD / 2009+ Ram 1500 4WD .75-2.5in 2.5 Series Shocks VS IR Coilover Kit - 211000

Special Price $1,183.11 Regular Price $1,479.95
sku
ico211000
Free Shipping Banner
More than 2 in stock

Upgrade your Ram 1500 with the ICON 2.5 VS Coilover Kit for superior performance both on and off-road. This kit offers adjustable front lift heights, enhanced wheel travel, and exceptional ride quality. Built with high-quality materials, these coilovers are fully rebuildable and revalveable for a long service life.

  • Adjustable lift height: 0-2.5" (model dependent)
  • Improved wheel travel and ride quality
  • Enhanced stability and reduced body roll
  • Durable, corrosion-resistant shock body
  • Easy bolt-in installation

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

View Installation Instructions

Features:

  • Adjustable coilovers yield .75-2.5" of front lift height on '09-'18 models or 0-1.5" of lift on '19-Up models
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
Specifications:
  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Adjustable Height: yes
  • Body Diameter: 2.5 IN
  • Boot Included: No
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • Gas Charged: yes
  • Grade Type: Performance
  • Lower Mount Type: Clevis
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: (2009-UP Models) ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: (2009-UP Models) ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: (2009-UP Models) ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: (2019-UP Models) ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: (2019-UP Models) ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
  • Remote Reservoir: NO
  • Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
  • Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
  • Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
  • Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
  • Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
  • Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
  • Shaft Diameter: 0.875 IN
  • Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center of Clevis Holes
  • Spring Color: Black
  • Spring Material: Steel
  • Upper Mount Type: Mounting Plate
Notes:
  • Factory Wheels & Tires Fitment: Yes
  • 2019-Up Ram Rebel Lift Height Range 0-.75" Over Stock
  • Compatible With 2019-2022 Ram 1500 Classic Models. Lift Height Range Is .75-2.5" Over Stock
  • Not Compatible With 2021-Up Ram 1500 Trx
  • Not Compatible With Models Equipped With Oe Air Suspension
Fitment:
  • Ram 1500 Laramie 4WD 2011-2018
  • Ram 1500 SLT 4WD 2011-2018
  • Ram 1500 ST 4WD 2011-2018
  • Ram 1500 Sport 4WD 2011-2018
  • Ram 1500 Big Horn 4WD 2011-2018
  • Ram 1500 Laramie Longhorn 4WD 2011-2018
  • Ram 1500 Outdoorsman 4WD 2011-2018
  • Ram 1500 Tradesman 4WD 2011-2018
  • Ram 1500 SXT 4WD 2011-2018
  • Ram 1500 Express 4WD 2012-2018
  • Ram 1500 Lone Star 4WD 2014-2018
  • Ram 1500 Special Service 2014-2021
  • Ram 1500 Laramie Limited 4WD 2014-2018
  • Ram 1500 Laramie 2019-2022
  • Ram 1500 SLT 2019-2022
  • Ram 1500 Sport 2019-2022
  • Ram 1500 Big Horn 2019-2022
  • Ram 1500 Tradesman 2019-2022
  • Ram 1500 HFE 2019-2022
  • Ram 1500 Lone Star 2019-2022
  • Ram 1500 Rebel 2019-2022
  • Ram 1500 ST 2019-2021
  • Ram 1500 Laramie Longhorn 2019-2021
  • Ram 1500 SXT 2019-2019
  • Ram 1500 Hemi Sport 2020-2022
  • Ram 1500 Laramie Sport 2020-2021
  • Ram 1500 Limited Longhorn 2021-2022
  • Ram 1500 Longhorn 2021-2021
  • Ram 1500 Classic Express 4WD 2019-2022
  • Ram 1500 Classic SLT 4WD 2019-2022
  • Ram 1500 Classic Special Service 2019-2022
  • Ram 1500 Classic Tradesman 4WD 2019-2022
  • Ram 1500 Classic Warlock 4WD 2019-2022
  • Ram 1500 Classic ST 4WD 2019-2020
  • Ram 1500 Classic Big Horn 4WD 2019-2019
  • Ram 1500 Classic Laramie 4WD 2019-2019
  • Ram 1500 Classic Lone Star 4WD 2019-2019
  • Ram 1500 Classic SXT Plus 4WD 2019-2019
  • Ram 1500 Classic Night Edition 4WD 2021-2021
  • Dodge Ram 1500 Laramie 4WD 2009-2010
  • Dodge Ram 1500 SLT 4WD 2009-2010
  • Dodge Ram 1500 ST 4WD 2009-2010
  • Dodge Ram 1500 Sport 4WD 2009-2010
  • Dodge Ram 1500 TRX4 2009-2010
More Information
More Information
Brand Icon Vehicle Dynamics
upc 00840103400495
