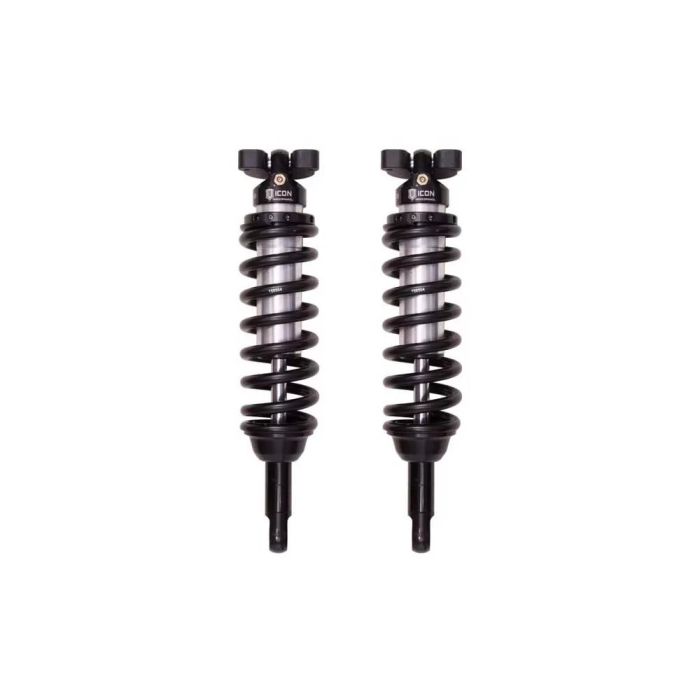

ICON 2015+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit - 71010
Upgrade your 2015-Up Chevrolet Colorado or GMC Canyon with the ICON 2.5 VS Coilover Kit. Experience superior ride quality and control with these height-adjustable coilovers, offering a 1.75-3" lift. Perfect for off-road adventures and larger tires.
- 25% increase in wheel travel
- Sport-tuned for on and off-road
- 6061 Aircraft-grade aluminum components
- Corrosion-resistant shock body
- 100% bolt-on installation
- Compatible with OEM wheels and tires
ICON Vehicle Dynamics V.S. Series 2.5"coilover shocks are an incredible upgrade for the front end of 2015-UP Colorado/Canyon 4WD trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-3" lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado/Canyon truck.
View Installation Instructions
Features:
- 25% increase in wheel travel over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Improved ride quality over stock on and off road
- Height-adjustable coilovers offer 1.75-3" of lift height
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling or welding necessary for installation
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Adjustable Height: yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Remote Reservoir: NO
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650 PPI
- Upper Mount Type: Mounting Plate
- Factory Wheels & Tires Fitment: Yes
- Canyon At4 Trim Lift Height Range .75-2" Over Stock
- Not Compatible With Colorado Zr2 Trim
- Chevrolet Colorado 2015-2016
- Chevrolet Colorado Base 17-20
- Chevrolet Colorado LT 17-22
- Chevrolet Colorado Z71 17-22
- Chevrolet Colorado WT 17-22
- Chevrolet Colorado Z71 LT 2021-2021
- GMC Canyon 2015-2020
- GMC Canyon Denali 2021-2022
- GMC Canyon Elevation 2021-2022
- GMC Canyon Elevation Standard 2021-2022
- GMC Canyon AT4 2021-2022
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103405940 |
