ICON 2015+ Chevrolet Colorado 1.75-3in Stage 1 Suspension System - K73051
Upgrade your Chevrolet Colorado or GMC Canyon with the ICON 1.75-3" Lift Stage 1 Suspension System. Designed for superior on and off-road performance, this system enhances wheel travel by 25% and improves ride quality without sacrificing towing capacity.
- Fits 2WD and 4WD models, including diesel
- Height-adjustable coilovers (1.75-3")
- Vehicle-specific tuned shocks for optimal damping
- 6061 Aircraft grade aluminum components
- Corrosion-resistant shock body
- 100% bolt-on installation

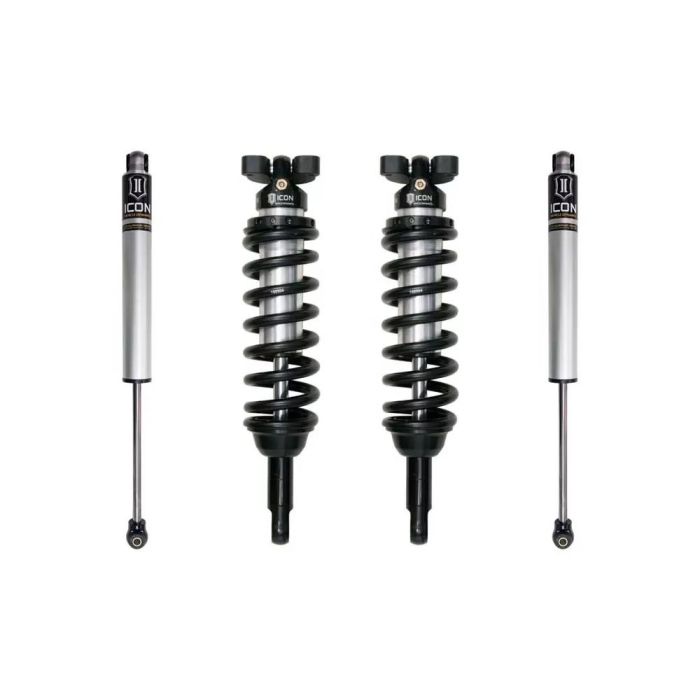

ICON engineers' primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform's suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 1.75-3" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-UP GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
View Installation Instructions
Features:
- Fits 2WD and 4WD models
- Compatible with diesel models
- 25% increase in wheel travel over stock
- Improved ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Height-adjustable coilovers offer 1.75-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
- 100% Bolt-on system - no drilling or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Bushings Included: NO
- Grade Type: Performance
- Maximum Lift: 3 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Oem Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- Canyon At4 Trim Lift Height Range .75-2" Over Stock
- Not Compatible With Colorado Zr2 Trim
- Chevrolet Colorado 2015-2016
- Chevrolet Colorado Base 17-20
- Chevrolet Colorado LT 17-22
- Chevrolet Colorado Z71 17-22
- Chevrolet Colorado WT 17-22
- Chevrolet Colorado Z71 LT 2021-2021
- GMC Canyon 2015-2020
- GMC Canyon AT4 2021-2022
- GMC Canyon Denali 2021-2022
- GMC Canyon Elevation 2021-2022
- GMC Canyon Elevation Standard 2021-2022
| Brand | Icon Vehicle Dynamics |
|---|
