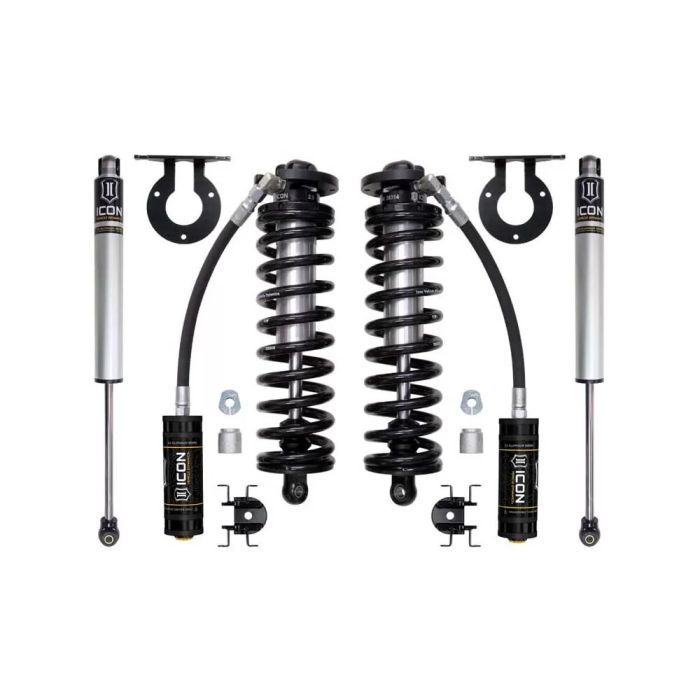

ICON 2017+ Ford F-250/F-350 2.5-3in Stage 1 Coilover Conversion System - K63141

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 17-23 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

View Installation Instructions

Features:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Grade Type: Performance
• Maximum Lift: 3 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Secondary Shock Options Available, Contact Us For More Details
• An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Springs Are Rated For Diesel Engines Only
• Application Note #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• 17-19 Super Duty Models Will Have Front Lift Height Range Of 2.5-3" Over Stock
• 2020-2023 Super Duty Models Equipped With Tremor Package Will Have Front Lift Height Range Of 2.25-2.75" Over Stock
• 2020-2023 Super Duty Models Without Tremor Package Will Have Front Lift Height Range Of 3.25-3.75" Over Stock
• Brake Line Kit (Part # 61111) Is Optional For End Users Who Do Not Want To Bend The Factory Steel Lines Or Are Looking For A Braided Stainless Upgrade (Not Necessary For Complete Install)
• Included Rear Shocks Are Compatible With 0-2" Of Rear Lift Over Stock
• Not Compatible With F-350 Cab & Chassis Models

• Ford F-250 Super Duty XL 4WD 17-23
• Ford F-250 Super Duty XLT 4WD 17-23
• Ford F-250 Super Duty Lariat 4WD 17-23
• Ford F-250 Super Duty King Ranch 4WD 17-23
• Ford F-250 Super Duty Platinum 17-23
• Ford F-250 Super Duty Limited 2018-2023
• Ford F-350 Super Duty XL Standard Cab Pickup 4WD 17-23
• Ford F-350 Super Duty XL Extended Cab Pickup 4WD 17-23
• Ford F-350 Super Duty XL Crew Cab Pickup 4WD 17-23
• Ford F-350 Super Duty XLT Standard Cab Pickup 4WD 17-23
• Ford F-350 Super Duty XLT Extended Cab Pickup 4WD 17-23
• Ford F-350 Super Duty XLT Crew Cab Pickup 4WD 17-23
• Ford F-350 Super Duty Lariat Extended Cab Pickup 4WD 17-23
• Ford F-350 Super Duty Lariat Crew Cab Pickup 4WD 17-23
• Ford F-350 Super Duty King Ranch 4WD 17-23
• Ford F-350 Super Duty Platinum 4WD 17-23
• Ford F-350 Super Duty Limited 2018-2023
