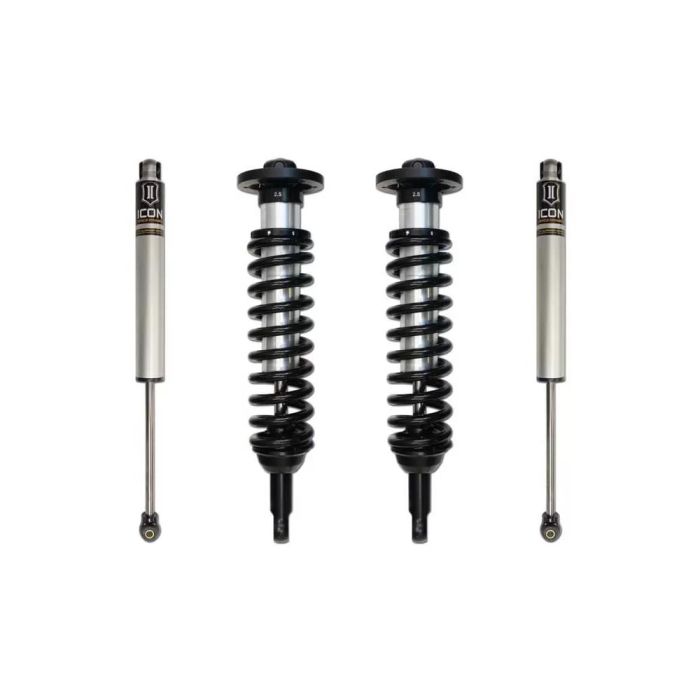

ICON 09-13 Ford F-150 4WD 0-2.63in Stage 1 Suspension System - K93001
Upgrade your 2009-2013 Ford F-150 4WD with the ICON Stage 1 Suspension System for superior performance on and off-road. This system enhances wheel travel and ride quality, featuring:
- Adjustable 0-2.63" lift height
- 2.5" coilover shocks with internal reservoir
- ICON-engineered Eibach coil springs
- 2.0 aluminum monotube rear shocks
- 100% bolt-on installation
- Corrosion-resistant components
- Compatible with OEM and recommended aftermarket wheels and tires
ICON Vehicle Dynamics 2009-2013 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 0-2.63" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2013 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
View Installation Instructions
Features:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Unique valving developed for the 2009-2013 F-150
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-2.63" of lift height
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 aluminum body IFP rear shock with 5/8" polished shaft
- 100% bolt-on system - no drilling, cutting, or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Bushings Included: NO
- Grade Type: Performance
- Maximum Lift: 2.63 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Oem Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- Ford F-150 4WD 2009-2009
- Ford F-150 Platinum 4WD 2010-2013
- Ford F-150 STX 4WD 2010-2013
- Ford F-150 XL 4WD 2010-2013
- Ford F-150 XLT 4WD 2010-2013
- Ford F-150 King Ranch 4WD 2010-2013
- Ford F-150 Lariat 4WD 2010-2013
- Ford F-150 FX4 4WD 2010-2013
- Ford F-150 Lariat Limited 4WD 2011-2011
- Ford F-150 Limited 4WD 2013-2013
| Brand | Icon Vehicle Dynamics |
|---|
