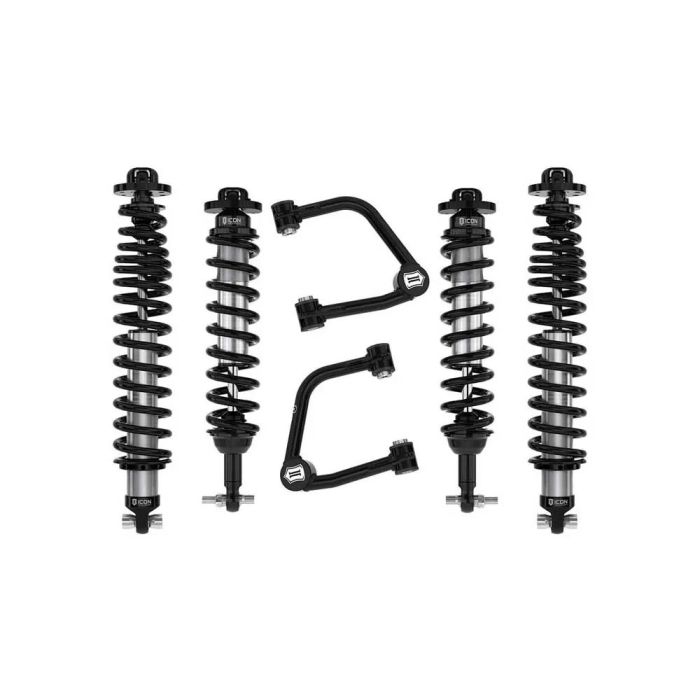

ICON 21-22 Ford Bronco Non-Sasquatch 3-4" Lift Stage 3 Suspension System Tubular UCA- ICON-K40003T
$4,149.85
sku
ICON-K40003T
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us
The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-2022 Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4" of front lift and 2-3" of rear lift over stock 4-door Broncos without the Sasquatch Package.
View Installation Instructions
Features:
- Improved suspension performance and ride quality over stock
- Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
- Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
- Adjustable coilovers yield up to 3-4" of front lift height and 2-3" of rear lift height over stock 4-door non-Sasquatch Broncos
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Add-On Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL
- Add-On Part: 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
- Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
- Bushings Included: Yes
- Coil Spring End 1 Type: Square
- Coil Spring End 2 Type: Square
- Coils Quantity Front: 2
- Coils Quantity Rear: 2
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 4 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Rear Spring Rate Type: Progressive Triple Rate
- Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
- When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
- Lift Heights & App Notes Based Non-Sasquatch Equipped Vehicles
- Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
- When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Application Note #66: 2 Door Models Will Sit Taller Than 4 Door Models.
- Oem Wheels & Tires Fitment: Yes
- Fitment Testing Done With Icon & Oe Steering Components. Due To Tight Clearances To Front Coilovers, Certain Aftermarket Steering Components May Not Be Compatible.
- Not Compatible With Bronco Raptor
- Ford Bronco Badlands 2021-2022
- Ford Bronco Base 2021-2022
- Ford Bronco Big Bend 2021-2022
- Ford Bronco Black Diamond 2021-2022
- Ford Bronco Outer Banks 2021-2022
| Brand | Icon Vehicle Dynamics |
|---|
