ICON 21-22 Ford Bronco Non-Sasquatch 3-4" Lift Stage 4 Suspension System Tubular UCA- ICON-K40004T

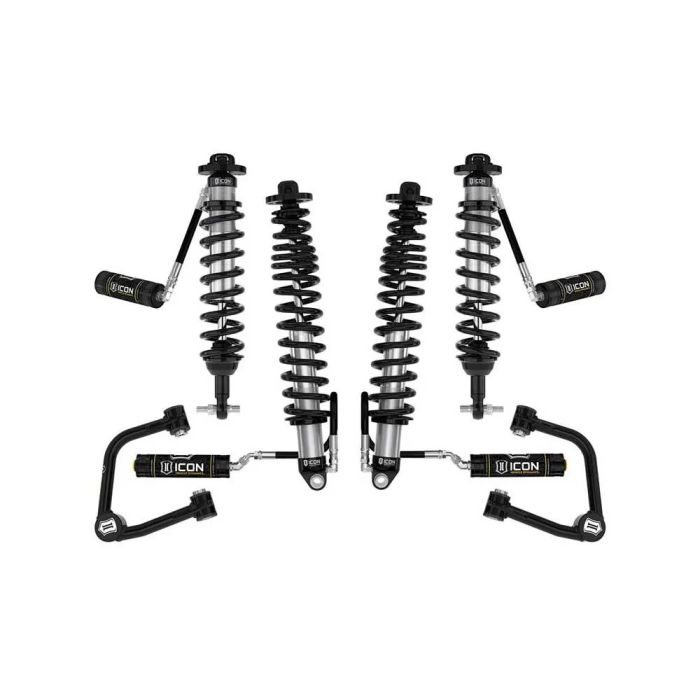

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-2022 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4" of front lift and 2-3" of rear lift over stock 4-door Broncos without the Sasquatch Package. To provide for sustained shock performance at speed through rough terrain, Stage 4 adds remote reservoirs to the ICON Coilovers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

View Installation Instructions

Features:

• Improved suspension performance and ride quality over stock
• Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Adjustable coilovers yield up to 3-4" of front lift height and 2-3" of rear lift height over stock 4-door Broncos without the Sasquatch package
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 611072 - 21-UP BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9"
• Add-On Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL
• Add-On Part: 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
• Bushings Included: Yes
• Coil Spring End 1 Type: Square
• Coil Spring End 2 Type: Square
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 4 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
• When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
• Lift Heights & App Notes Based Non-Sasquatch Equipped Vehicles
• When Running Factory Lower Links Use Part #611072
• Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
• When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Application Note #66: 2 Door Models Will Sit Taller Than 4 Door Models.
• Oem Wheels & Tires Fitment: Yes
• Fitment Testing Done With Icon & Oe Steering Components. Due To Tight Clearances To Front Coilovers, Certain Aftermarket Steering Components May Not Be Compatible.
• Not Compatible With Bronco Raptor

• Ford Bronco Badlands 2021-2022
• Ford Bronco Base 2021-2022
• Ford Bronco Big Bend 2021-2022
• Ford Bronco Black Diamond 2021-2022
• Ford Bronco Outer Banks 2021-2022
