ICON 2022+ Toyota Tundra 1.5-2.25in Stage 3 Suspension System - K53193
Special Price
$1,782.38
Regular Price
$2,089.78
sku
icoK53193
More than 2 in stock
Upgrade your 2022-2023 Toyota Tundra with the ICON Stage 3 2.5 Suspension System for enhanced on- and off-road performance. This system includes front coilovers and rear shocks, offering adjustable lift and improved vehicle control.
- Adjustable front lift: 1.25-2.25"
- Supports up to 35" tires
- 2.5 Series front coilovers with internal reservoirs
- 2.0 Aluminum Series rear shocks
- 100% bolt-on installation
- Increased front wheel travel by up to 40%
- Includes sway bar drop brackets

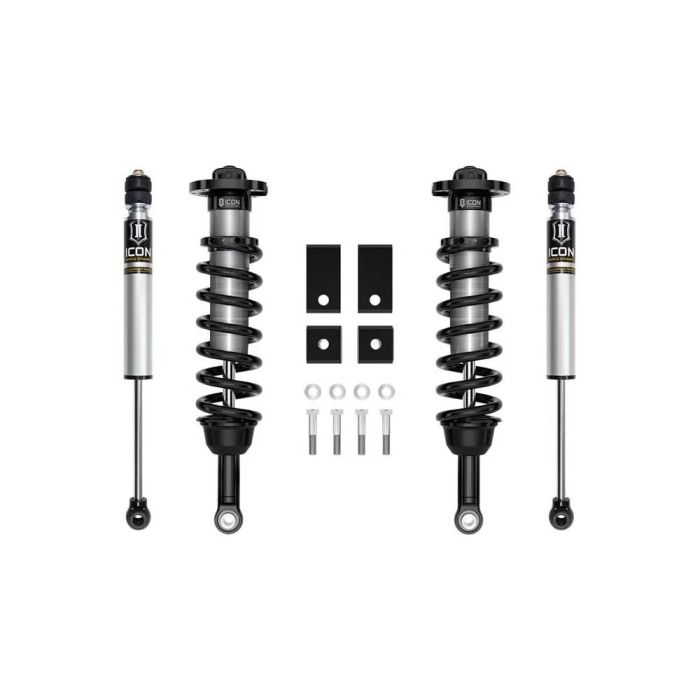

The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2022-2023 Toyota Tundra is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, This system offers improved on- and off-road performance as well as adjustable front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shocks a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
View Installation Instructions
Features:
- Vehicle specific design for 2022-2023 Toyota Tundra
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 1.25-2.25" of front lift over stock when used with stock UCAs
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Bushings Included: Yes
- Coils Quantity Front: 2
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.5 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
- Not Compatible With Trd Pro
- Icon Does Not Recommend Lifting Above 2.25" Of Lift Without An Icon Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4Wd Models
- For 4Wd Models Without Trd Off-Road Package Icon Recommends Using Icon Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Application Note #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- Oem Wheels & Tires Fitment: Yes
- If Upgrading A Tundra Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional
- Included Rear Shocks Are Compatible With 0-1" Of Rear Lift Over Stock On Models Equipped With Rear Coil Springs.
- Most Tundra Sub-Models Equipped With I-Force Gasoline Engine Will Have Front Lift Height Range Of 1.25-2.25" Over Stock
- Most Tundra Sub-Models Equipped With I-Force Max Hybrid Engine Will Have Front Lift Height Range Of .75-2.25" Over Stock
- Tundra Sr5 Equipped With Trd Sport Suspension Package Will Have Lift Height Range Of 2.25-3.25" Over Stock
- Toyota Tundra SR 4WD 2022-2023
- Toyota Tundra 1794 Edition 4WD Gas 2022-2023
- Toyota Tundra SR5 4WD 2022-2023
- Toyota Tundra Platinum 4WD Gas 2022-2023
- Toyota Tundra Limited 4WD Gas 2022-2023
- Toyota Tundra SR RWD 2022-2023
- Toyota Tundra SR5 RWD 2022-2023
- Toyota Tundra SR5 2022-2023
- Toyota Tundra Limited RWD Gas 2022-2023
- Toyota Tundra Platinum RWD Gas 2022-2023
- Toyota Tundra 1794 Edition RWD Gas 2022-2023
- Toyota Tundra Limited 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Limited RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Platinum 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Platinum RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra 1794 Edition 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra 1794 Edition RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Capstone 2022-2023
- Toyota Tundra Limited TRD Off-Road 2022-2022
- Toyota Tundra Platinum 1794 Edition 2022-2022
- Toyota Tundra SR5 TRD Off-Road 2022-2022
- Toyota Tundra SR TRD Off-Road 2022-2022
| Brand | Icon Vehicle Dynamics |
|---|
