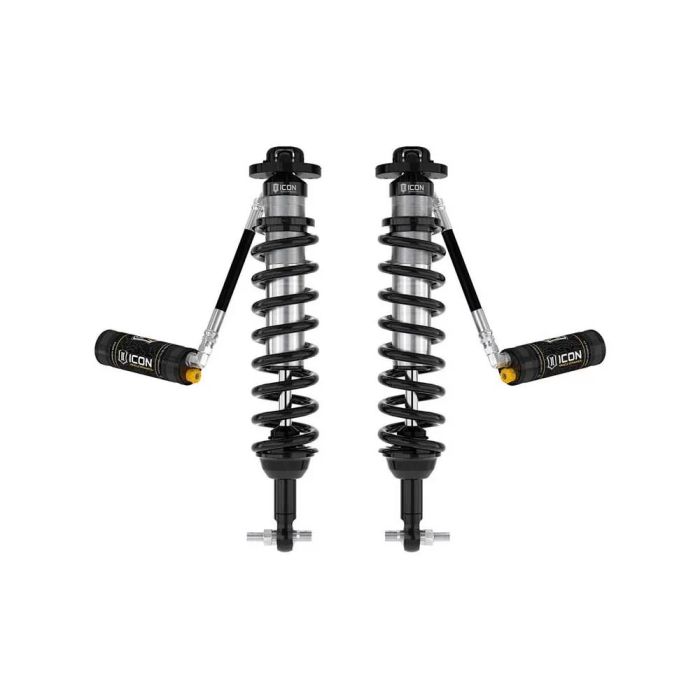

ICON 21-UP Ford Bronco 2-3in Front 2.5 VS RR CDCV COILOVER KIT - 48700C

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4" of lift height adjustability on Broncos without the Sasquatch package or 2-3" of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

View Installation Instructions

Features:

• Increased wheel travel (up to 11.5") and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3" of front lift on Sasquatch Broncos
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
• Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
• Adjustable Damping: Yes
• Adjustable Height: Yes
• Body Diameter: 2,5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• Maximum Lift: 4 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
• Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Upper Mount Type: Mounting Plate

• When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
• Recommended Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
• When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
• Factory Uca'S Will Not Align Properly Past 2.5" Of Lift. Above 2.5" Of Lift An Aftermarket Uca Is Recommended.
• Oem Wheels & Tires Fitment (With Sasquatch Package): Yes
• Oem Wheels & Tires Fitment (Without Sasquatch Package): No
• Bronco Everglades Will Have Lift Height Range Of 1.5-2.5" Over Stock
• Due To Increased Wheel Travel And Lift Height Provided By These Coilovers, Icon Upper Control Arms With Delta Joint Pro, Part Numbers 48400Dj Or 48500Dj, Are Recommended. Other Aftermarket Front Upper Control Arms May Not Be Compatible And It Is The Duty Of The Installer To Verify Fitment. Failure To Cycle Suspension And Check For Ball Joint Bind Issues May Lead To Component Failure And/Or Injury.
• Fitment Testing Done With Icon & Oe Steering Components. Due To Tight Clearances To Front Coilovers, Certain Aftermarket Steering Components May Not Be Compatible.
• Not Compatible With Bronco Raptor

• Ford Bronco Base 2021-2022
• Ford Bronco Black Diamond 2021-2022
• Ford Bronco Outer Banks 2021-2022
• Ford Bronco Wildtrak 2021-2022
• Ford Bronco Badlands 2021-2022
• Ford Bronco Big Bend 2021-2022
• Ford Bronco First Edition 2021-2021
• Ford Bronco Everglades 2022-2022
