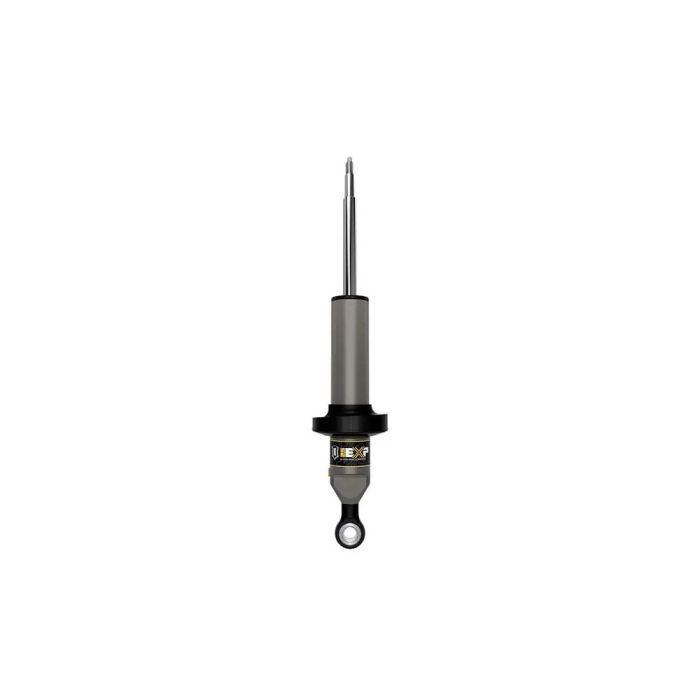

ICON 22+ Toyota Tundra 2.5 EXP Front Coilover Shock - 58671

The 2022-2023 Toyota Tundra/2023 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra's OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle's OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3" of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

View Installation Instructions

Features:

• Vehicle specific design for 2022-2023 Toyota Tundra and 2023 Sequoia
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-3" of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

• Add-On Part: 55154 - 22-UP TUNDRA SWAY BAR DROP KIT
• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: No
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" with 5.75" Backspace / 25mm Offset
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Shoulder of Stem
• Upper Mount Type: Stem

• Not Compatible With Trd Pro
• Icon Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An Icon Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4Wd Models
• For 4Wd Models Without Trd Off-Road Package Icon Recommends Using Icon Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Application Note #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• Oem Wheels & Tires Fitment: Yes
• Exp Coilovers Are Sold Individually. A Quantity Of 2 Are Required Per Vehicle.
• If Upgrading A Vehicle Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional
• Most Sequoia Sub-Models Will Have Front Lift Height Range Of 0-2.13" Over Stock
• Tundra Lift Heights Above 2.25" Require Sway Bar Drop Bracket Kit Part Number 55154. Required For All Lift Heights On Sequoia.
• Tundra Sr5 Equipped With Trd Sport Packages Will Have Lift Height Range Of 1-4" Over Stock

• Toyota Tundra 1794 Edition 4WD Gas 2022-2023
• Toyota Tundra Platinum 4WD Gas 2022-2023
• Toyota Tundra Limited 4WD Gas 2022-2023
• Toyota Tundra SR5 4WD 2022-2023
• Toyota Tundra SR 4WD 2022-2023
• Toyota Tundra SR RWD 2022-2023
• Toyota Tundra SR5 RWD 2022-2023
• Toyota Tundra Limited RWD Gas 2022-2023
• Toyota Tundra Platinum RWD Gas 2022-2023
• Toyota Tundra 1794 Edition RWD Gas 2022-2023
• Toyota Tundra Limited 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Limited RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Platinum 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Platinum RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra 1794 Edition 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra 1794 Edition RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Capstone 2022-2023
• Toyota Tundra Platinum 1794 Edition 2022-2022
• Toyota Tundra SR5 TRD Off-Road 2022-2022
• Toyota Tundra SR TRD Off-Road 2022-2022
• Toyota Tundra Limited TRD Off-Road 2022-2022
• Toyota Sequoia SR5 4WD 2023-2023
• Toyota Sequoia SR5 RWD 2023-2023
• Toyota Sequoia Limited 4WD 2023-2023
• Toyota Sequoia Limited RWD 2023-2023
• Toyota Sequoia Platinum 4WD 2023-2023
• Toyota Sequoia Platinum RWD 2023-2023
• Toyota Sequoia Capstone 4WD 2023-2023
• Toyota Sequoia Capstone RWD 2023-2023
• Toyota Sequoia TRD Off-Road 2023-2023
