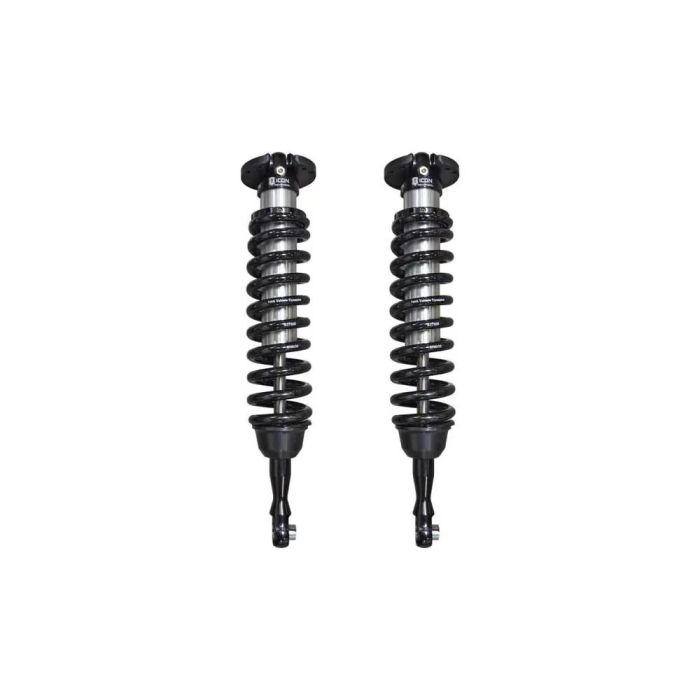

ICON 2007+ Toyota Tundra 2.5 Series Shocks VS IR Coilover Kit - 58650
Special Price
$1,198.89
Regular Price
$1,499.95
sku
ico58650
More than 2 in stock
Upgrade your 2007-2021 Toyota Tundra with the ICON 2.5 VS Coilover Kit. Experience superior ride quality, enhanced handling, and increased wheel travel. This kit includes all necessary hardware for easy installation.
- Adjustable ride height: 1" - 3" lift
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body
- Billet aluminum upper mount
- PTFE-lined spherical bearing
- 2.5" shock diameter to prevent overheating
- 250 PSI nitrogen-charged internal reservoir
- Chrome-silicon spring
- Completely re-buildable
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. These shocks add 2" of additional wheel travel and dramatically increase the capabilities of your 07-21 Tundra's front suspension. These coil-over's come complete with all the hardware necessary to complete the installation.
View Installation Instructions
Features:
- Adjustable ride height from 1" - 3" of lift over stock
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body / Extreme Weather Plating Option Available
- Billet aluminum upper mount
- PTFE-lined spherical bearing
- Completely re-buildable
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: NO
- Adjustable Height: yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Maximum Lift: 3 IN
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 6" Backspace / 25mm Offset
- Remote Reservoir: NO
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
- Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 600 PPI
- Upper Mount Type: Mounting Plate
- Factory Wheels & Tires Fitment: Yes
- Toyota Tundra 2007-2021
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103404042 |
