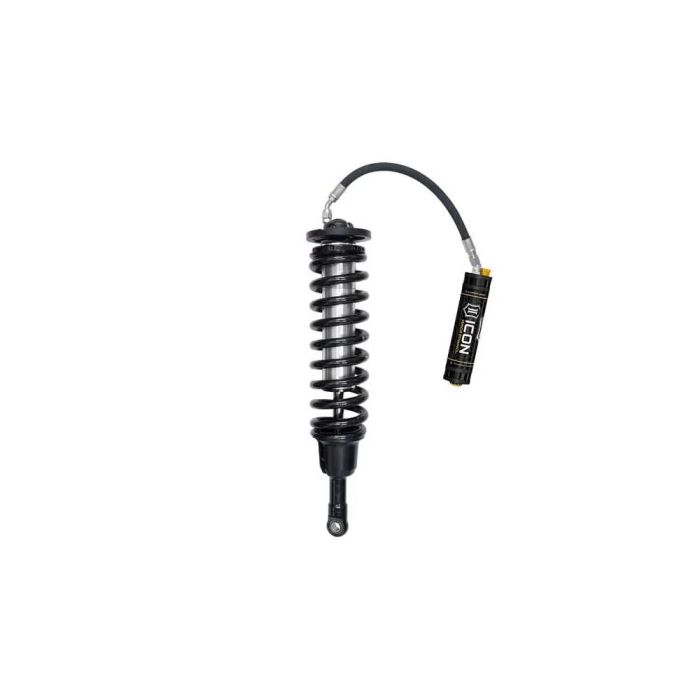

ICON 10-14 Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit - Passenger Side - 95000R
Please Request Quote for stock status
Enhance your Ford Raptor's performance with the ICON 3.0 VS Remote Reservoir/CDCV Coilover. Engineered for both on- and off-road excellence, this coilover offers superior ride quality and durability.
- 3.0 OEM Replacement Remote Reservoir
- Adjustable ride height from 1" to 3.5"
- High-resolution compression adjuster for fine-tuning
- Durable 6063-T832 aluminum construction
- Increased travel and performance with Eibach springs
- Extended droop travel for better off-road capability
- Direct bolt-in installation
ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street "pickup truck" and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.
View Installation Instructions
Features:
- 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shock
- Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
- Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
- Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
- Nitrogen Charged 6063-T832 Aluminum 10" Remote Reservoirs that are Precision CNC Honed & Hard Anodized
- Adjustable Ride Height from 1 3.5" of Lift
- ICON Engineered Eibach 3 5/8" ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
- Oversized 1" Heavy Duty CNC Machined Shock Shafts
- Extended Droop Travel and Increased Overall Performance on and off road
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Damping: Yes
- Adjustable Height: yes
- Body Diameter: 3 IN
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
- Remote Reservoir: Yes
- Service Parts: 302005 - 3.0 ICON REBUILD KIT (ALL)
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 1 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Upper Mount Type: Mounting Plate
- Coilovers Are Sold Individually. Passenger Side Coilover Part # 95000L Is Also Required.
- Factory Wheels & Tires Fitment: Yes
- Ford F-150 SVT Raptor 2010-2014
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103408996 |
