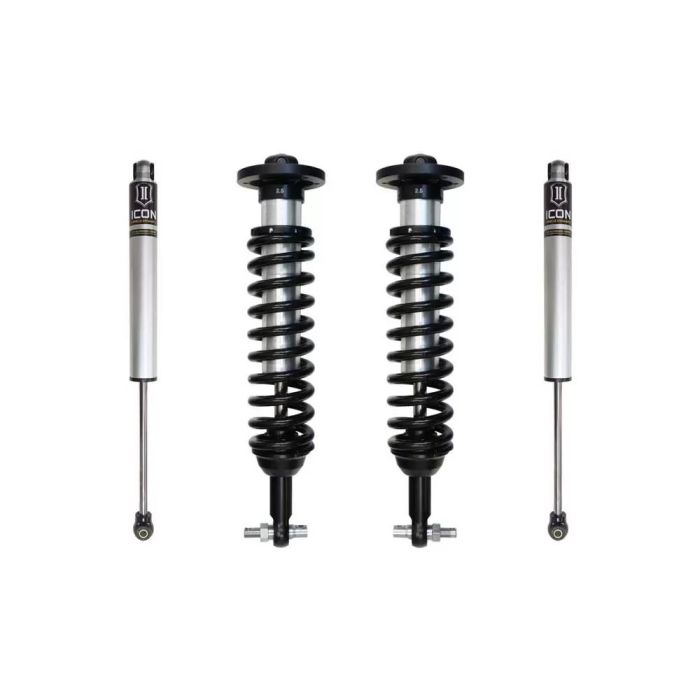

ICON 2015+ Ford F-150 2WD 0-3in Stage 1 Suspension System - K93091

ICON Vehicle Dynamics 2015-2020 Ford F-150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 0-3" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2020 F-150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed for the lighter weight of the 2015-2020 F-150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-3" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 aluminum body IFP rear shock with 5/8" induction hardened shaft
• 100% bolt-on system - no drilling, cutting, or welding necessary for install

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Grade Type: Performance
• Maximum Lift: 3 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Included Rear Shocks Are Compatible With 0-1" Of Rear Lift Over Stock On Most Models
• Lift Heights Above 2" Over Stock May Require Aftermarket Front Upper Control Arms To Maintain Proper Alignment
• Models Equipped With Power-Stroke Diesel Engines Will Have Lift Height Range Of 0-2.5" Over Stock
• Only Compatible With Rear Wheel Drive (2Wd/Rwd) Models

• Ford F-150 King Ranch RWD 2015-2017
• Ford F-150 Lariat RWD 2015-2017
• Ford F-150 Platinum RWD 2015-2017
• Ford F-150 XL RWD 2015-2017
• Ford F-150 XLT RWD 2015-2017
• Ford F-150 Limited RWD 2016-2020
• Ford F-150 SSV RWD 2016-2020
• Ford F-150 King Ranch RWD Gas 2018-2020
• Ford F-150 King Ranch RWD FLEX 2018-2020
• Ford F-150 King Ranch RWD 2018-2020
• Ford F-150 Lariat RWD Gas 2018-2020
• Ford F-150 Lariat RWD FLEX 2018-2020
• Ford F-150 Lariat RWD 2018-2020
• Ford F-150 Platinum RWD Gas 2018-2020
• Ford F-150 Platinum RWD FLEX 2018-2020
• Ford F-150 Platinum RWD 2018-2020
• Ford F-150 XL RWD Gas 2018-2020
• Ford F-150 XL RWD FLEX 2018-2020
• Ford F-150 XL RWD 2018-2020
• Ford F-150 XLT RWD Gas 2018-2020
• Ford F-150 XLT RWD FLEX 2018-2020
• Ford F-150 XLT RWD 2018-2020
