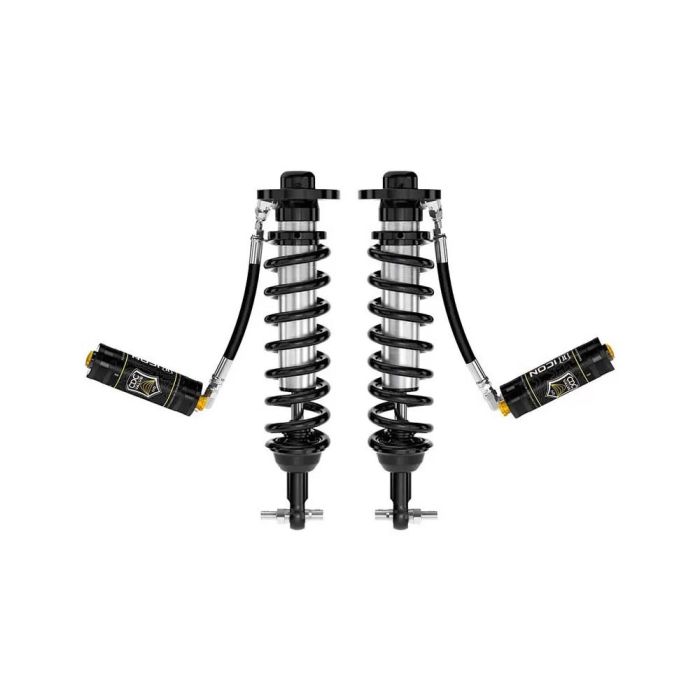

ICON 2021+ Ford F-150 4WD 0-2.75in Frt 2.5 Series Shocks VS RR CDCV Coilover Kit - 91823C
Upgrade your 2021-2023 Ford F-150 4WD with the ICON 2.5 VS RR Coilovers w/CDCV. Enjoy superior ride quality and performance with these adjustable coilovers, offering 0-2.75" lift height. Perfect for larger wheels and tires, these coilovers feature:
- Enhanced wheel travel and ride quality
- ICON-engineered Eibach Springs
- Durable 6061 aircraft-grade aluminum components
- Corrosion-resistant shock bodies
- External reservoirs for cooler operation
- Easy external tuning with 10 settings
- 100% bolt-on installation
The ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2023 Ford F-150 4WD truck. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2023 F-150 4WD.
View Installation Instructions
Features:
- Increased wheel travel and ride quality over stock
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- High strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- External reservoirs to attain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for external tuneability of your shocks
- Adjustable 0-2.75" lift height
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Damping: Yes
- Adjustable Height: Yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: Yes
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Maximum Lift: 2.75 IN
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
- Remote Reservoir: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Spring Color: Black
- Spring Material: Steel
- Upper Mount Type: Mounting Plate
- Oem Wheels & Tires Fitment: Yes
- Lift Heights Above 2" Over Stock May Require Aftermarket Front Upper Control Arms To Maintain Proper Alignment
- Models Equipped With Powerboost Hybrid Engines Will Have Lift Height Range Of 0-2.5" Over Stock
- Models Equipped With Power-Stroke Diesel Engines Will Have Lift Height Range Of 0-2.25" Over Stock
- Not Compatible With F-150 Tremor Or F-150 Raptor
- Not Compatible With Models Equipped With Bluecruise
- Not Compatible With Models Equipped With Continuously Controlled Damping (Ccd) System
- Only Compatible With 4-Wheel Drive (4Wd) Models
- Ford F-150 SSV 4WD 2021-2023
- Ford F-150 XLT FULL HYBRID EV-GAS (FHEV) 2021-2023
- Ford F-150 XL FULL HYBRID EV-GAS (FHEV) 2021-2023
- Ford F-150 XL Gas 2021-2023
- Ford F-150 XL FLEX 2021-2023
- Ford F-150 Police Responder 2021-2023
- Ford F-150 XLT Gas 2021-2023
- Ford F-150 XLT FLEX 2021-2023
- Ford F-150 King Ranch 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
- Ford F-150 King Ranch 4WD Gas 2021-2023
- Ford F-150 King Ranch 4WD FLEX 2021-2023
- Ford F-150 Platinum 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
- Ford F-150 Lariat 4WD Gas 2021-2023
- Ford F-150 Lariat 4WD FLEX 2021-2023
- Ford F-150 Lariat 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
- Ford F-150 Platinum 4WD Gas 2021-2023
- Ford F-150 Platinum 4WD FLEX 2021-2023
- Ford F-150 XL 4WD 2021-2021
- Ford F-150 XLT 4WD 2021-2021
- Ford F-150 Lariat 4WD 2021-2021
- Ford F-150 King Ranch 4WD 2021-2021
- Ford F-150 Platinum 4WD 2021-2021
