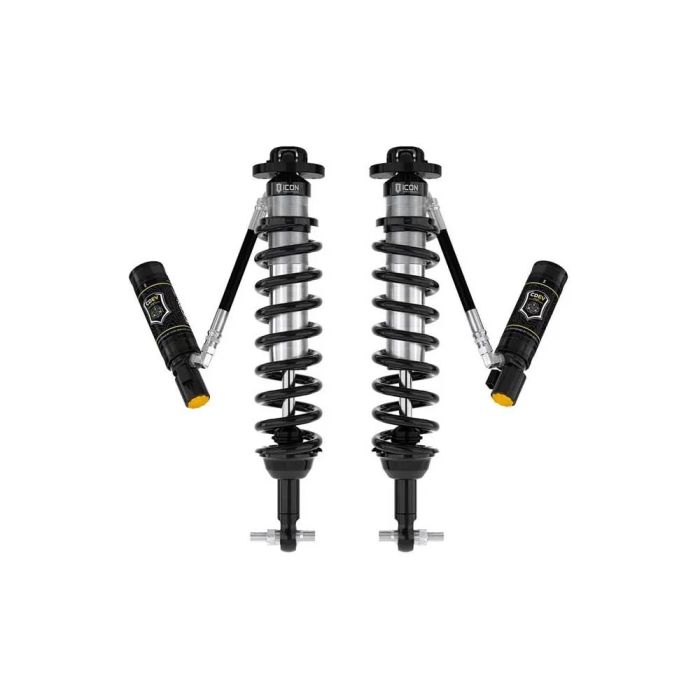

ICON 21-UP Ford Bronco 2-3in Front 2.5 VS RR CDEV COILOVER KIT - 48700E

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4" of lift height adjustability on Broncos without the Sasquatch package or 2-3" of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

View Installation Instructions

Features:

• Increased wheel travel (up to 11.5") and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3" of front lift on Sasquatch Broncos
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation

• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 48710E - 21-UP BRONCO REAR 2.5 VS CDEV COILOVER KIT
• Add-On Part: 43501 - 21-UP BRONCO IIC INSTALL KIT
• Add-On Part: 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
• Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
• Adjustable Damping: Electronically
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• Maximum Lift: 4 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
• Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 18x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 20x9" w/ 5.00" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Upper Mount Type: Mounting Plate

• When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
• Recommended Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
• When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
• Factory Uca'S Will Not Align Properly Past 2.5" Of Lift. Above 2.5" Of Lift An Aftermarket Uca Is Recommended.
• Oem Wheels & Tires Fitment (With Sasquatch Package): Yes
• Oem Wheels & Tires Fitment (Without Sasquatch Package): No
• Also Requires Installation Of Part Numbers 48710E And 43501
• Bronco Everglades Will Have Lift Height Range Of 1.5-2.5" Over Stock
• Due To Increased Wheel Travel And Lift Height Provided By These Coilovers, Icon Upper Control Arms With Delta Joint Pro, Part Numbers 48400Dj Or 48500Dj, Are Recommended. Other Aftermarket Front Upper Control Arms May Not Be Compatible And It Is The Duty Of The Installer To Verify Fitment. Failure To Cycle Suspension And Check For Ball Joint Bind Issues May Lead To Component Failure And/Or Injury.
• Fitment Testing Done With Icon & Oe Steering Components. Due To Tight Clearances To Front Coilovers, Certain Aftermarket Steering Components May Not Be Compatible.
• Not Compatible With Bronco Raptor

• Ford Bronco Base 2021-2022
• Ford Bronco Wildtrak 2021-2022
• Ford Bronco Badlands 2021-2022
• Ford Bronco Outer Banks 2021-2022
• Ford Bronco Black Diamond 2021-2022
• Ford Bronco Big Bend 2021-2022
• Ford Bronco First Edition 2021-2021
• Ford Bronco Everglades 2022-2022
