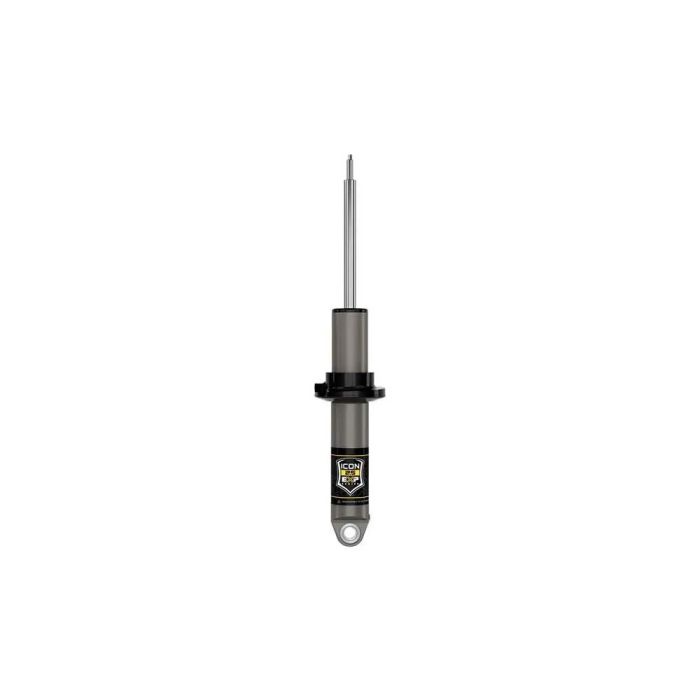

ICON 2021+ Ford Bronco Hoss 2.0 Rear EXP Coilover 2.5in - 48612
Special Price
$421.26
Regular Price
$514.95
sku
ico48612
More than 2 in stock
Upgrade your 2021-Up Ford Bronco with the ICON 2.5 EXP Coilover for superior performance and lift. This rear shock absorber offers a 0-1.75" lift, utilizing your factory coil spring for cost-effective enhancement. Enjoy custom-tuned performance and maximum travel with these key features:
- Vehicle-specific design for HOSS 2.0 Suspension Package
- Adjustable ride heights from 0-1.75"
- 2.5" Aluminum Series Shock with Internal Reservoir
- Fully rebuildable and re-tunable
- 100% bolt-on installation, no cutting or welding required
The 2021-Up Ford Bronco EXP Series rear shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
View Installation Instructions
Features:
- Vehicle specific design for 2021-UP Ford Bronco with HOSS. 2.0 Suspension Package
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-1.75" of rear lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Adjustable Damping: NO
- Adjustable Height: Yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Coil Over Springs Included: No
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Material: Steel
- Maximum Lift: 3 IN
- Minimum Lift: 0 IN
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)
- Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
- Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 17x8.5" with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 18x9" with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 20x9" with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys | 17x8.5" with 4.75" Backspace / 0mm Offset
- Remote Reservoir: NO
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Upper Mount Type: Mounting Plate
- Oem Wheels & Tires Fitment: Yes
- Exp Coilovers Are Sold Individually. A Quantity Of 2 Are Required Per Vehicle.
- Not Compatible With Bronco Raptor
- Only Compatible With 2021-Up Ford Broncos Equipped With Hoss 2.0 Suspension Package
- Ford Bronco Big Bend 2021-2022
- Ford Bronco Badlands 2021-2022
- Ford Bronco Black Diamond 2021-2022
- Ford Bronco Outer Banks 2021-2022
- Ford Bronco Base 2021-2022
- Ford Bronco Wildtrak 2021-2022
- Ford Bronco First Edition 2021-2021
- Ford Bronco Everglades 2022-2022
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103414324 |
