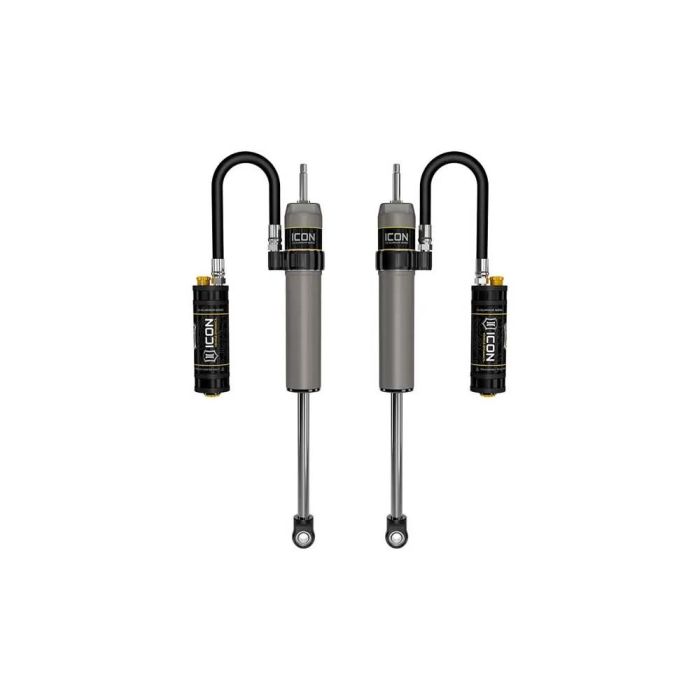

ICON 2022+ Toyota Tundra 0-1in Rear 2.5 Series Shocks VS CDCV RR - Pair - 57840CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

View Installation Instructions

Features:

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.25 IN
• Cylinder Color: Grey
• Cylinder Material: Aluminum
• Damping Adjustment Type: Manual
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter: 2.5 IN
• Upper Mount Type: Stem

• Compatible With 0-1.5" Of Rear Lift On Non-Trd Tundras Or 0-1" Lift On Trd Tundras Equipped With Rear Coil Springs
• Compatible With 0-3" Of Rear Lift On 2023 Sequoias Equipped With Rear Coil Springs
• Compatible With 0-3" Of Rear Lift On Tundras Equipped With Rear Oe Load-Leveling Rear Height Control Air Suspension
• If Upgrading A Vehicle Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional

• Toyota Tundra SR 2022-2023
• Toyota Tundra SR5 2022-2023
• Toyota Tundra Limited 2022-2023
• Toyota Tundra Platinum 2022-2023
• Toyota Tundra 1794 Edition 2022-2023
• Toyota Tundra TRD Pro 2022-2023
• Toyota Tundra SR TRD Off-Road 2022-2022
• Toyota Tundra SR5 TRD Off-Road 2022-2022
• Toyota Tundra Limited TRD Off-Road 2022-2022
• Toyota Tundra Platinum 1794 Edition 2022-2022
• Toyota Tundra Capstone 2022-2022
• Toyota Sequoia Limited 2023-2023
• Toyota Sequoia SR5 2023-2023
• Toyota Sequoia Platinum 2023-2023
• Toyota Sequoia Capstone 2023-2023
• Toyota Sequoia TRD Off-Road 2023-2023
• Toyota Sequoia TRD Pro 2023-2023
