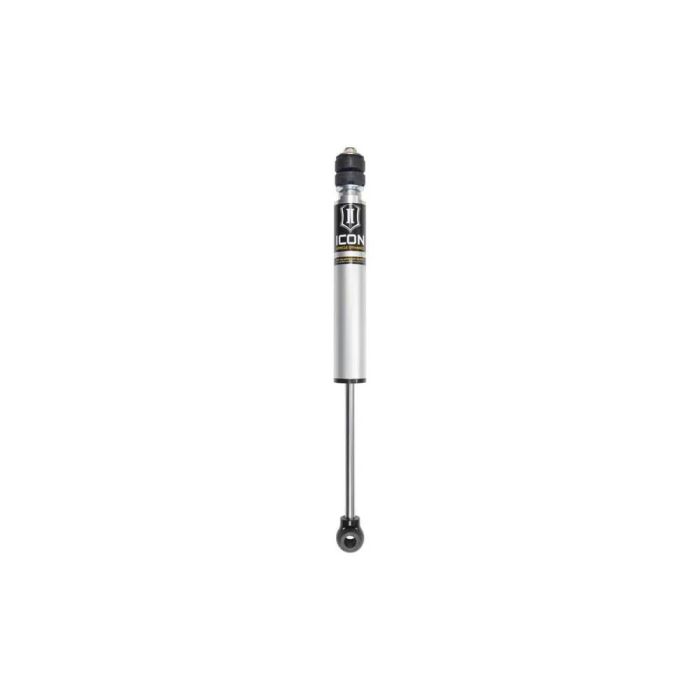

ICON 96-02 Toyota 4Runner 0-2in Rear 2.0 Series Aluminum Shocks VS NR - 56514
Upgrade your 1996-2002 Toyota 4Runner with the ICON 0-2" Lift Rear 2.0 VS Shock (ICON-56514). Designed for both street and off-road performance, these shocks offer superior ride quality and durability.
- Premium 5WT shock oil for consistent damping
- Nitrogen charged monotube design
- 6061 aluminum components for strength
- Polyurethane bushings for OE fitment
- 100% rebuildable and revalveable
- 8.45" shock stroke for enhanced travel
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
View Installation Instructions
Features:
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8" chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
- Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
- Adjustable: NO
- Attributed Description: ICON Vehicle Dynamics Shock Absorber Adjustable: No Boot Included: No Coil Over Springs Included: No Dust Shield: No Gas Charged: Yes Lower Mount Type: Eyelet Shock Absorber Body End Measuring Point: Shoulder of Stem Shock Absorber Rod End Measuring Point: Center of Eyelet Upper Mount Type: Stem Remote Reservoir: No Body Diameter: 2 IN Compressed Length: 13.100 IN Fully Open Length: 21.55 IN Shock Stroke: 8.45 IN Travel Length: 8.45 IN
- Body Diameter: 2 IN
- Boot Included: NO
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- Bushing Material: Rubber
- Coil Over Springs Included: NO
- Dust Shield: NO
- Finish: Anodized
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Mounting Hardware Included: Yes
- Remote Reservoir: NO
- Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: CENTER OF EYELET
- Upper Mount Type: Stem
- Toyota 4Runner 1996-2002
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103403175 |
