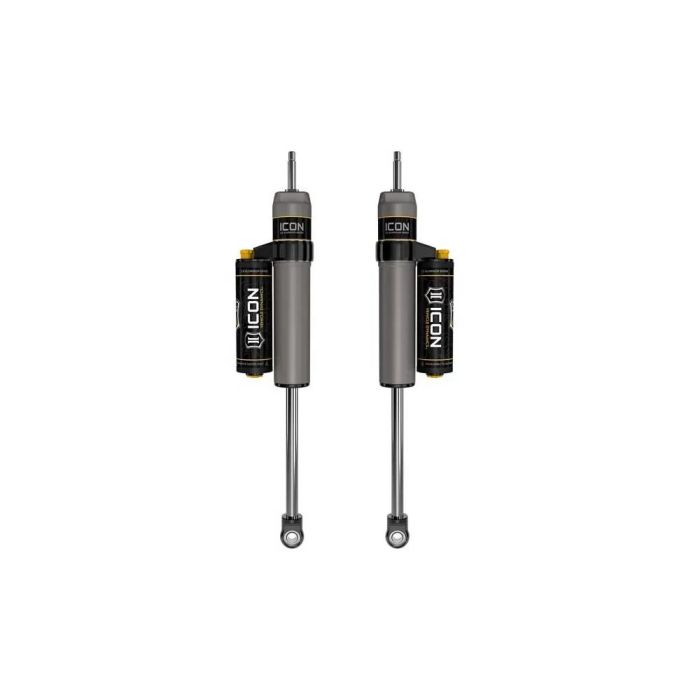

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS PB CDCV - Pair - 67710CP
Elevate your Ford F-250 or F-350 Super Duty with ICON's 2.5 VS PB/CDCV Shocks. Designed for superior off-road performance and smooth street rides, these shocks feature:
- 10 levels of compression adjustability with CDC Valve technology
- Piggyback reservoir for enhanced heat dissipation
- Durable 6061 aircraft-grade aluminum components
- Corrosion-resistant, hard anodized aluminum cylinders
- 100% rebuildable and revalveable design
- Internal "Bump Zone" for increased damping control
ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
View Installation Instructions
Features:
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8" diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- Adjustable: Yes
- Boot Included: NO
- Bore Diameter: 2.25 IN
- Cylinder Color: Silver
- Cylinder Material: Steel
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Mounting Hardware Included: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 IN
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Tube Outside Diameter: 2.5 IN
- Upper Mount Type: Stem
- Ford F-250 Super Duty 4WD 2005-2022
- Ford F-350 Super Duty 4WD 2005-2022
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103405872 |
