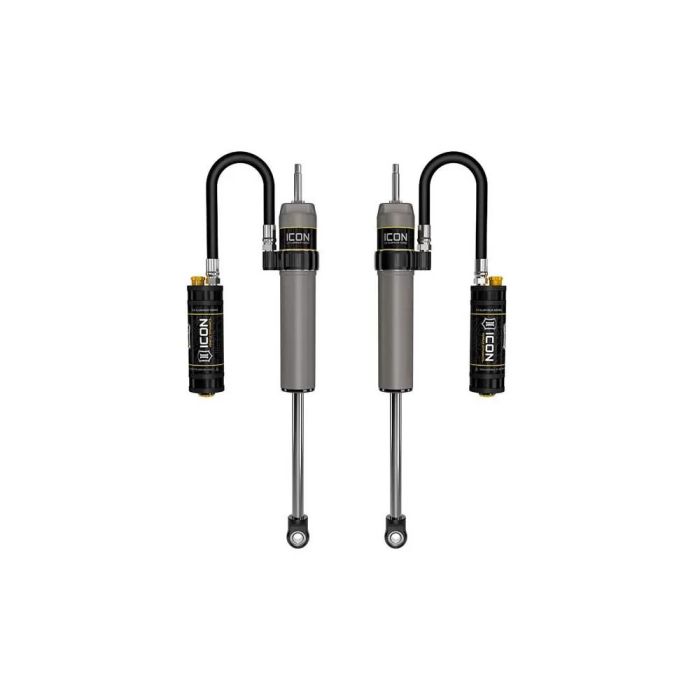

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 0-2.5in Front 2.5 Series Shocks VS RR CDCV - Pair - 67800CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

View Installation Instructions

Features:

• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 6061 aircraft grade aluminum CNC machined components
• 7/8" diameter induction hardened, chrome plated shock shaft
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• 100% Revalveable
• 100% Rebuildable

• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.25 IN
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
• Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter: 2.5 IN
• Upper Mount Type: Stem

• Also Requires Reservoir Doubler Kit Part Number 611003 If Installing As Secondary Shock Along With Icon Front Coilover Conversion
• Compatible With 0-2.75" Of Front Lift Over Stock Of 2020-2023 F-250/F-350 4Wd Equipped With Tremor Package
• Compatible With 0-3.75" Of Front Lift Over Stock Of 2020-2023 F-250/F-350 4Wd Without Tremor Package
• Compatible With 0-3.75" Of Front Lift Over Stock Of 2020-2023 F-450 4Wd
• Compatible With 0-3" Of Front Lift Over Stock Of 2005-2019 F-250/F-350/F-450 4Wd

• Ford F-250 Super Duty XLT 4WD 2005-2023
• Ford F-250 Super Duty XL 4WD 2005-2023
• Ford F-250 Super Duty Lariat 4WD 2005-2023
• Ford F-250 Super Duty King Ranch 4WD 2005-2023
• Ford F-250 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-250 Super Duty FX4 2008-2014
• Ford F-250 Super Duty Cabela's 2009-2010
• Ford F-250 Super Duty Platinum 2013-2023
• Ford F-250 Super Duty Base 2015-2016
• Ford F-250 Super Duty Limited 2018-2023
• Ford F-250 Super Duty King Ranch 4WD 2020-2023
• Ford F-350 Super Duty Lariat 4WD 2005-2023
• Ford F-350 Super Duty XLT 4WD 2005-2023
• Ford F-350 Super Duty XL 4WD 2005-2023
• Ford F-350 Super Duty King Ranch 4WD 2005-2023
• Ford F-350 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-350 Super Duty FX4 2008-2009
• Ford F-350 Super Duty Cabela's 2009-2010
• Ford F-350 Super Duty Platinum 4WD 2013-2023
• Ford F-350 Super Duty Limited 2018-2023
• Ford F-450 Super Duty 4 X 4 2005-2023
