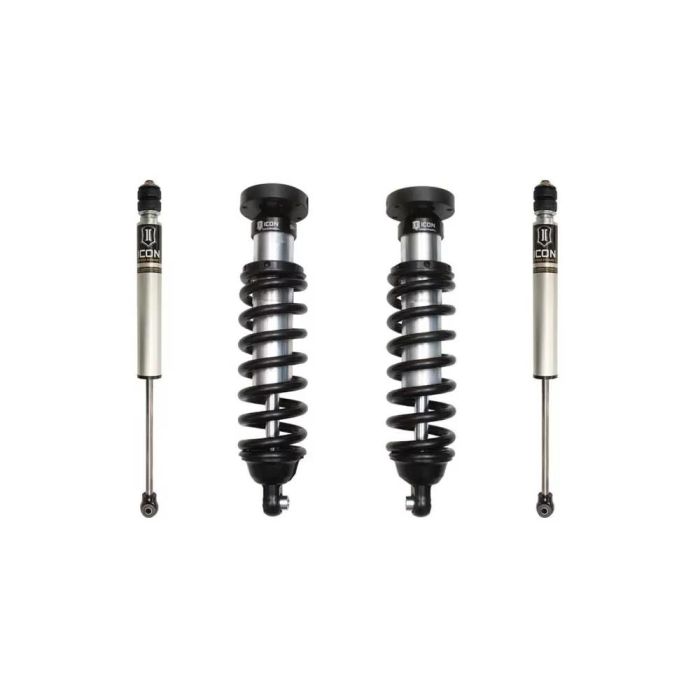

ICON 00-06 Toyota Tundra 0-2.5in Stage 1 Suspension System - K53031
Enhance your 2000-2006 Toyota Tundra's performance with the ICON Stage 1 Suspension System. Designed for serious drivers, this system boosts wheel travel and ride quality both on and off-road. Key features include:
- Adjustable 2.5" coilover shocks for larger tires
- Vehicle-specific tuned front and rear shocks
- 6061 aircraft-grade aluminum components
- Corrosion-resistant shock body
- 100% bolt-on installation
Upgrade your Tundra for superior control and comfort.
ICON Vehicle Dynamics Toyota Tundra Stage 1 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-2.5" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2000 - 2006 Toyota Tundra Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
View Installation Instructions
Features:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-2.5" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 VS Aluminum Series with 5/8" polished chrome shafts
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Bushings Included: Yes
- Coils Quantity Front: 2
- Grade Type: Performance
- Maximum Lift: 2.5 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5" Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650 PPI
- 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Oem Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- Toyota Tundra 2000-2006
| Brand | Icon Vehicle Dynamics |
|---|
