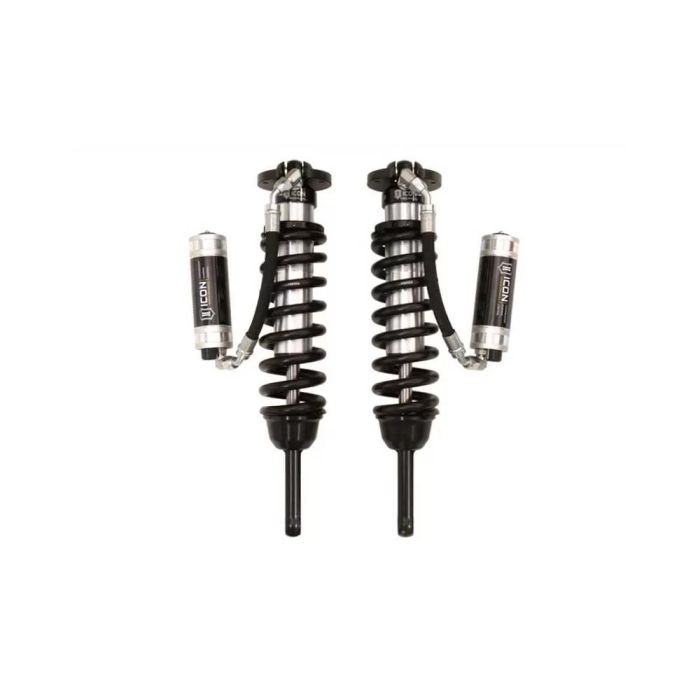

ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit - 58735C
Special Price
$1,751.53
Regular Price
$2,199.95
sku
ico58735C
More than 2 in stock
Upgrade your Toyota Tacoma with the ICON 2.5 VS Extended Travel RR/CDCV Coilover Kit. Designed for 2005 and newer models, this kit offers superior performance and adjustability.
- Adjustable ride height: 0" - 3.5"
- 10-point adjustable CDCV
- External reservoir for maximum cooling
- Race shock piston with flutter stack compression valving
- Billet aluminum upper mount
- Durable chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- Compatible with OEM and select aftermarket wheels and tires
These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON's CDCV which offers 10 points of adjustability.
View Installation Instructions
Features:
- Adjustable ride height from 0" - 3.5"
- Race shock piston with flutter stack compression valving
- External reservoir ensures maximum cooling
- ICON CDCV provides 10 points of adjustability
- Cad-plated threaded body / Extreme Weather Plating Option Available
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- Mounting Bracket Orients Reservoir for Optimum Tire Clearance
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Damping: Yes
- Adjustable Height: yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Material: Aluminum
- Material: Steel
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
- Remote Reservoir: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650 PPI
- Upper Mount Type: Mounting Plate
- Oem Wheels & Tires Fitment: Yes
- 2017-Up Tacoma Trd Pro Models Will Have Front Lift Height Range Of 0-1.25" Over Stock
- Aftermarket Front Upper Control Arms Required For Installation
- Toyota Tacoma Pre Runner 2005-2015
- Toyota Tacoma Base 4WD 2005-2015
- Toyota Tacoma SR5 Prerunner 2006-2009
- Toyota Tacoma TRD Sport Prerunner 2006-2009
- Toyota Tacoma Base Prerunner 2006-2006
- Toyota Tacoma TRD Sport 2010-2022
- Toyota Tacoma TRD Pro 2015-2022
- Toyota Tacoma SR5 2016-2022
- Toyota Tacoma TRD Off-Road 2016-2022
- Toyota Tacoma Limited 2016-2022
- Toyota Tacoma SR 2016-2022
- Toyota Tacoma Edicion Especial 2016-2022
- Toyota Tacoma Sport 17-22
- Toyota Tacoma Nightshade 2021-2022
- Toyota Tacoma Trail 2021-2021
- Toyota Hilux 2005-2015
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103404301 |
