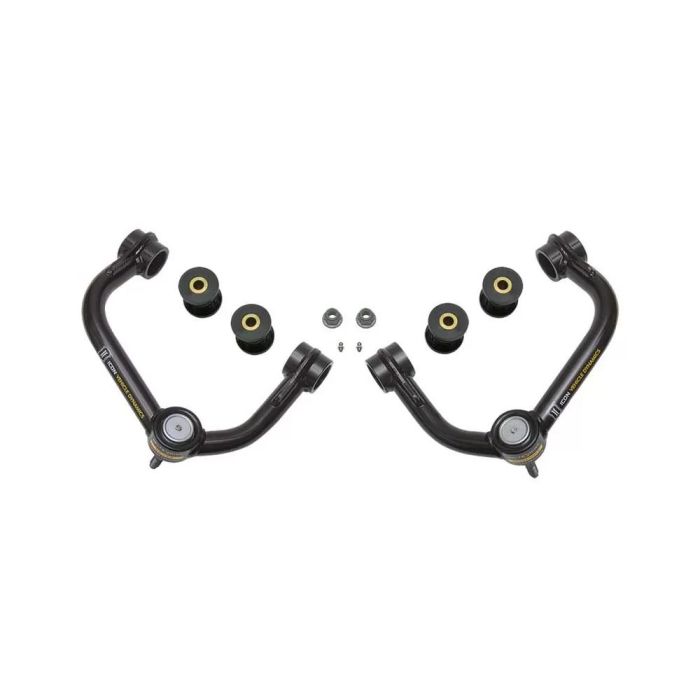

ICON 2021+ Ford F-150 Tubular Upper Control Arm Delta Joint Kit - 98502DJ

Take the performance of your 2021-2023 Ford F-150 to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2021-2023 Ford F-150. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

View Installation Instructions

Features:

• ICON Delta Joint
• 1026 DOM Steel Construction
• CNC Bent Tubing
• Serviceable Dual Stage Bushings
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Black Semi-Gloss Powder Coat Finish

• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Adjustable: NO
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Color: Black
• Bushing Material: Polyurethane
• Bushings Included: Yes
• Color: Black
• Construction: Tubular
• Control Arm Construction: Upper
• Finish: Powdercoat
• Grade Type: Performance
• Grease Fitting Included: yes
• Grease Fittings Included: Yes
• Greaseable: yes
• Material: DOM Steel
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Pre-Greased: NO
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Service Parts: 614503 -98500 / 98501 / 98550 REPLACEMENT BUSHING AND SLEEVE KIT
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
• Service Parts: 614555 - 01-UP GM HD/15-UP COLORADO/14-18 GM1500(LARGE TAPER) DELTA JOINT KIT

• Oem Wheels & Tires Fitment: Yes
• Compatible With 1.75-3" Of Front Lift Over Stock On Most F-150 Sub-Models.
• Not Compatible With F-150 Tremor
• Not Compatible With F-150S Equipped With Continuously Controlled Damping (Ccd) System
• Only Compatible With Oe Spindles. Do Not Install In Combination With Any Aftermarket Spindles.

• Ford F-150 King Ranch 2021-2023
• Ford F-150 Platinum 2021-2023
• Ford F-150 Police Responder 2021-2023
• Ford F-150 SSV 2021-2023
• Ford F-150 XL 2021-2023
• Ford F-150 XLT 2021-2023
• Ford F-150 Lariat 2021-2023
