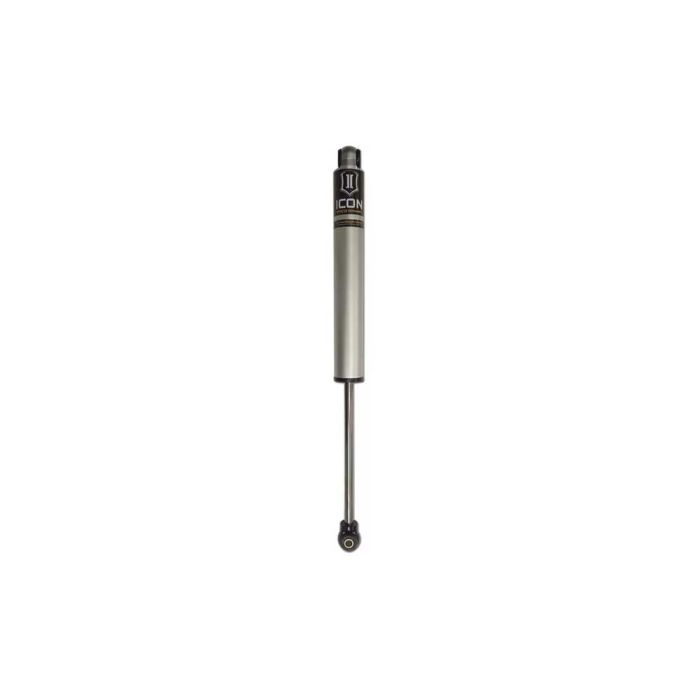

ICON 99-16 Ford F-250/F-350 Super Duty 4WD 3-6in Rear 2.0 Series Aluminum Shocks VS IR - 36508
Upgrade your Ford Super Duty's performance with the ICON 2.0 VS Shock. Designed for 3-6" rear lifts, these shocks offer superior on and off-road handling. Key features include:
- Nitrogen charged monotube design
- Durable 5/8" chrome plated steel shaft
- 6061 aluminum components for strength
- Polyurethane bushings for a smooth ride
- 100% rebuildable and revalveable
- Excellent heat dissipation and corrosion resistance
Compatible with Ford Excursion (2000-2005) and Ford Super Duty (1999-2016) models.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features:
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8" chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
- Adjustable: NO
- Attributed Description: ICON Vehicle Dynamics Shock Absorber Adjustable: No Boot Included: No Coil Over Springs Included: No Dust Shield: No Gas Charged: Yes Lower Mount Type: Eyelet Shock Absorber Body End Measuring Point: Center of Eyelet Shock Absorber Rod End Measuring Point: Center of Eyelet Upper Mount Type: Eyelet Remote Reservoir: No Body Diameter: 2 IN Compressed Length: 19.350 IN Fully Open Length: 32.67 IN Shock Stroke: 13.32 IN Travel Length: 13.32 IN
- Body Diameter: 2 IN
- Boot Included: NO
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- Coil Over Springs Included: NO
- Dust Shield: NO
- Finish: Anodized
- Fully Open Length: 32.67 IN
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Remote Reservoir: NO
- Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shock Absorber Body End Measuring Point: CENTER OF EYELET
- Shock Absorber Rod End Measuring Point: CENTER OF EYELET
- Upper Mount Type: EYELET
- 2000-2005 Ford Excursions Also Require Shock Bar Pin Part Number 196001
- Compatible With 3-6" Of Rear Lift Over Stock
- Not Compatible With F-350/F-450 Cab & Chassis Models
- Ford Excursion 2000-2005
- Ford F-250 Super Duty 1999-2016
- Ford F-350 Super Duty 1999-2016
- Ford F-450 Super Duty Crew Cab Pickup 2008-2016
- Ford F-450 Super Duty Extended Cab Pickup 2015-2015
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103402321 |
