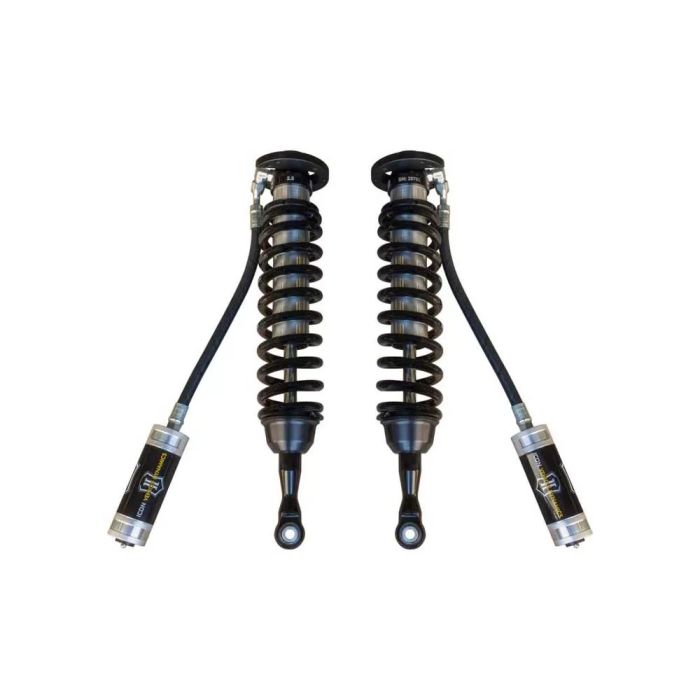

ICON 2007+ Toyota Tundra 2.5 Series Shocks VS RR Coilover Kit - 58750
Special Price
$1,514.68
Regular Price
$1,899.95
sku
ico58750
More than 2 in stock
Upgrade your Toyota Tundra's performance with the ICON 2.5 VS Remote Reservoir Coilover Kit. Designed for 2007-2021 models, this kit enhances suspension travel and durability. Key features include:
- Adjustable ride height: 1" - 3" lift
- External reservoir for maximum cooling
- Chrome-silicon spring and 250 PSI nitrogen charge
- Race shock piston with flutter stack compression valving
- Includes sway bar and reservoir mounting brackets
- Billet aluminum upper mount and cad-plated threaded body
- Compatible with OEM and recommended aftermarket wheels and tires
ICON Vehicle Dynamics has taken their already perfect performing coil-over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tundra's front suspension. These coil-over's come complete with all the hardware necessary to complete the installation.
View Installation Instructions
Features:
- Adjustable ride height from 1" - 3" of lift over stock
- Mounting Bracket Orients Reservoir for Optimum Tire Clearance
- External Reservoir Ensures Maximum Cooling
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- Race shock piston with flutter stack compression valving
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets
- Cad-plated threaded body
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Damping: NO
- Adjustable Height: yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Maximum Lift: 3 IN
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 6" Backspace / 25mm Offset
- Remote Reservoir: Yes
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
- Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Material: Steel
- Spring Rate: 650 PPI
- Upper Mount Type: Mounting Plate
- Factory Wheels & Tires Fitment: Yes
- Toyota Tundra 2007-2021
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103404479 |
