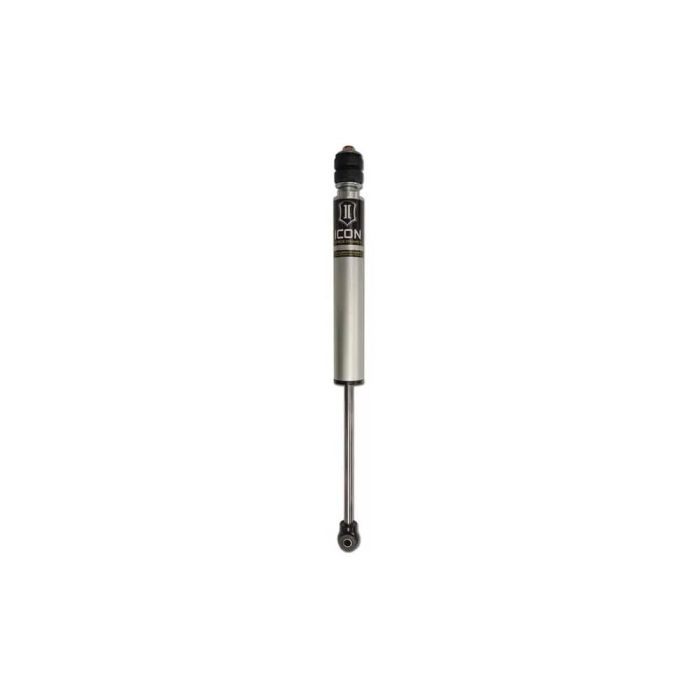

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 2.5in Front 2.0 Series Aluminum Shocks VS IR - 66512

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

View Installation Instructions

Features:

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with internal reservoir3
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8" chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable

• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Adjustable: NO
• Body Diameter: 2 IN
• Boot Included: NO
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Coil Over Springs Included: NO
• Dust Shield: NO
• Finish: Anodized
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Remote Reservoir: NO
• Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: CENTER OF EYELET
• Upper Mount Type: Stem

• Can Be Installed As Secondary Shocks In Oe Location With Icon 2.5-3" Lift Coilover Conversions
• Compatible With 1.5-2.75" Of Front Lift Over Stock On 2020-2023 Super Duty Models Equipped With Tremor Package. Not Compatible With Lift Kits Utilizing Radius Arm Drop Brackets.
• Compatible With 2.5-3" Of Front Lift Over Stock On 2005-2019 Super Duty Models
• Compatible With 2.5-3.75" Of Front Lift Over Stock On 2020-2023 Super Duty Models Without Tremor Package. Not Compatible With Lift Kits Utilizing Radius Arm Drop Brackets.
• Shocks Sold Individually. A Quantity Of 2 Are Required Per Vehicle.

• Ford F-250 Super Duty XL 4WD 2005-2023
• Ford F-250 Super Duty XLT 4WD 2005-2023
• Ford F-250 Super Duty Lariat 4WD 2005-2023
• Ford F-250 Super Duty King Ranch 4WD 2005-2023
• Ford F-250 Super Duty Harley-Davidson Edition 4WD 2005-2010
• Ford F-250 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-250 Super Duty FX4 2008-2014
• Ford F-250 Super Duty Cabela's 2009-2010
• Ford F-250 Super Duty Platinum 2013-2023
• Ford F-250 Super Duty Base 2015-2016
• Ford F-250 Super Duty Limited 2018-2023
• Ford F-350 Super Duty XL 4WD 2005-2023
• Ford F-350 Super Duty XLT 4WD 2005-2023
• Ford F-350 Super Duty Lariat 4WD 2005-2023
• Ford F-350 Super Duty King Ranch 4WD 2005-2023
• Ford F-350 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-350 Super Duty FX4 2008-2009
• Ford F-350 Super Duty Cabela's 2009-2010
• Ford F-350 Super Duty Platinum 4WD 2013-2023
• Ford F-350 Super Duty Limited 2018-2023
• Ford F-450 Super Duty 4 X 4 2005-2023
