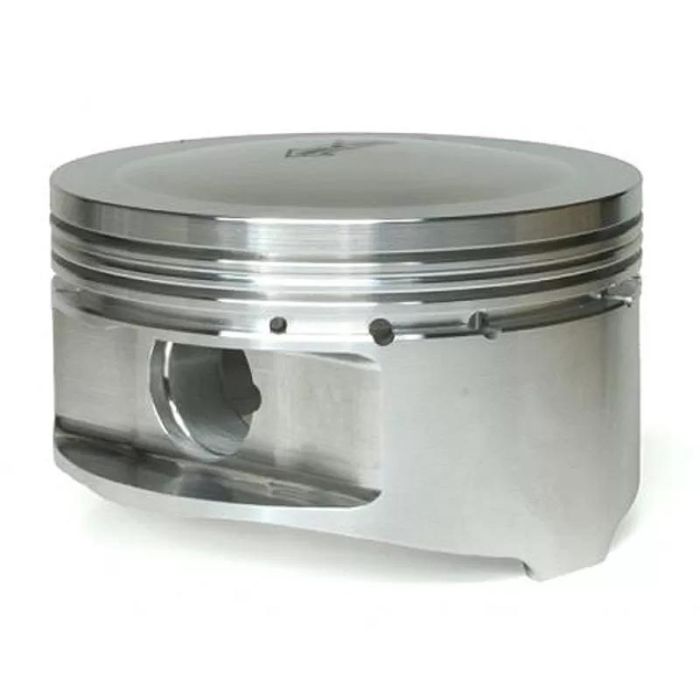

Manley Hyundai Genesis Coupe 2.0L Turbo 86.0mm +.5mm Oversized Bore 9.3:1 Dish Piston Set with Rings - 616005C-4
Upgrade your Hyundai G4KC 2.0L Theta I-4 with Manley Platinum Series 86.5mm Pistons. Crafted from high-strength 2618 material, these lightweight yet durable pistons ensure long-lasting performance. Enjoy quiet start-ups with the offset wrist pin design. Each kit includes premium chrome moly wrist pins, round wire locks, and Total Seal steel top ring sets at no extra cost.
- Lightweight design with offset wrist pin
- Premium steel top ring sets and round wire locks included
- Made for +1mm valve sizes
- Pressure balance groove
86.5mm Standard Stroke Piston Specifications:
- Bore Size: 86.5mm
- Over Size: +.5mm
- Rod Length: 146.12mm
- Stroke: 86mm
- Comp Distance: 1.181"
- Dome Volume: -2.5cc
- Comp Ratio: 9.3:1
- Piston Type: Dish
- Piston Weight: 332 grams
NOTE: Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring.
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through a unique "one fixturing" manufacturing method that assures maximum horsepower.
Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.
- Lightweight design with offset wrist pin
- Premium steel top ring sets and round wire locks included
- Made for +1mm valve sizes
- Pressure balance groove
86.5mm Standard Stroke Piston Specifications:
- Bore Size : 86.5mm
- Over Size : + .5mm
- Rod Length : 146.12mm
- Stroke : 86mm
- Comp Distance : 1.181"
- Dome Volume : -2.5cc
- Comp Ratio : 9.3:1
- Piston Type : Dish
- Piston Weight : 332 grams
NOTE: Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring.
| Brand | Manley |
|---|---|
| upc | 807298062921 |
