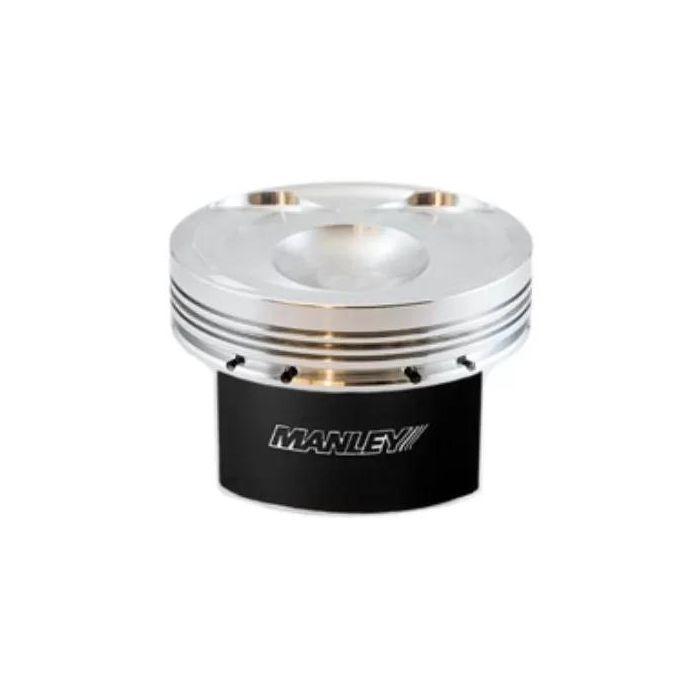

Manley Ford EcoBoost STD Stroke 87.6mm STD Bore 9.5:1 CR Dish Piston Set - 637001C-4
Upgrade your Ford Focus RS or Mustang with the Manley 87.6mm +.1mm 9.5 2.3L EcoBoost Dish Piston Set. Crafted from high-strength 2618 material, these lightweight yet durable pistons ensure maximum horsepower and long service life. Features include:
- Perfect ring groove to skirt squareness
- Offset wrist pin design for enhanced performance
- 1.2, 1.2, 2.8mm Total Seal ring package
- Moly coated skirts
- Includes roundwire locks and pressure balance grooves
- Premium Chrome Moly wrist pins (Standard Series)
- 9310 Alloy wrist pins (Extreme Duty Series)
Specifications: 87.6mm bore, +.1mm oversize, 9.5 compression ratio, 384g weight.
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 2.8mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included in the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Specifications (94mm Stroke):
- Bore Size (mm): 87.6
- Over Size: +.1mm
- Rod Length: 5.875"
- Stroke (mm): 94
- Comp Distance: 1.291"
- Dome Volume (cc): -8
- Comp Ratio: 9.5
- Piston Type: Dish
- Piston Wt/Gms: 384
- Included Ring Set: 46876-4
- Ford Focus RS 2016-Up, Mustang 2015-Up (.886"/22.5mm x 2.250" Pin)
| Brand | Manley |
|---|---|
| upc | 807298100494 |
