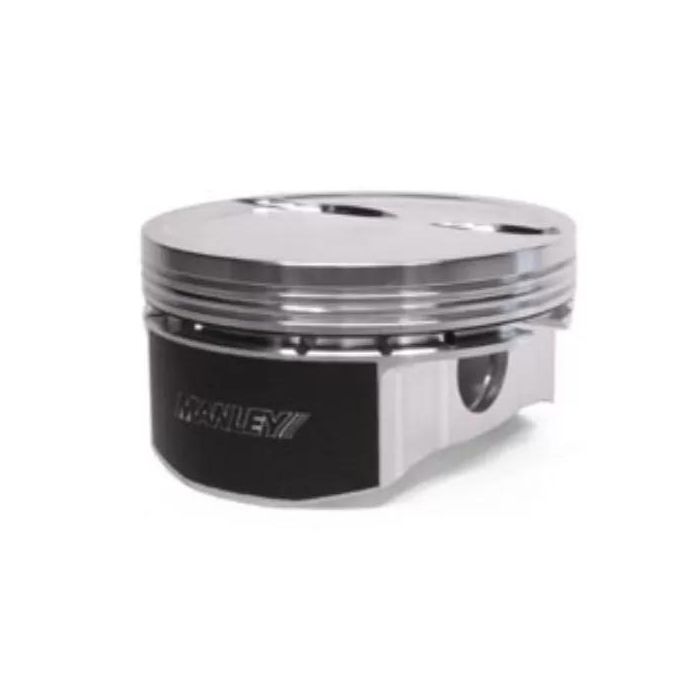

Manley Ford Coyote 5.0L DOHC 4 Valve 3.640in Bore +3.75cc Dome 11.0 CR Piston Set - 598010C-8
Upgrade your Ford 5.0L Coyote engine with the Manley 3.640" +3.75cc Platinum Series Dome Premium Steel Top Rings Set of 8. Engineered for high performance and durability, these pistons are crafted from 2618 high-strength material and feature a lightweight design. Perfect for maximizing horsepower and ensuring long service life.
- High-strength 2618 material
- Lightweight yet robust design
- Perfect ring groove to skirt squareness
- Moly coated skirts for ultimate performance
- 1.2, 1.2, 3mm Total Seal ring package
- Offset wrist pin design for quiet start-ups
- Includes Premium Chrome Moly wrist pins
Fitment: Ford Coyote 5.0L Gen I/II DOHC 4 Valve 2011-2017
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 3mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Features:
- 2618 high strength material Lightweight design.
- Perfect ring groove to skirt squareness.
- Round wire locks.
- Moly Coated Skirts.
- 1.2, 1.2, 3.0mm ring package.
- 2.500" x .150" wall Premium Chrome Moly pin (Standard Series) included.
- 9310 alloy .180" wall pin (Extreme Duty Series) included P/N 42507.
- Offset wrist pin design for quiet start-ups.
- Pressure balance groove.
- Will accommodate +1mm valve sizes (except 5959 series).
- .200" deck thickness, .225" down top ring.
- Bore Size: 3.640
- Rod Length: 5.933"
- Stroke (mm): 3.650"
- Comp Distance: 1.165"
- Dome Volume (cc): +3.75
- Comp Ratio: 11.0:1
- Piston Type: Dome
- Piston Wt/Gms: 395
- Premium Steel Top Rings: 46710ST-8
- Ford Coyote 5.0L Gen I/II DOHC 4 Valve 2011-2017
- Sold as a Set of 8
| Brand | Manley |
|---|---|
| upc | 807298075563 |
